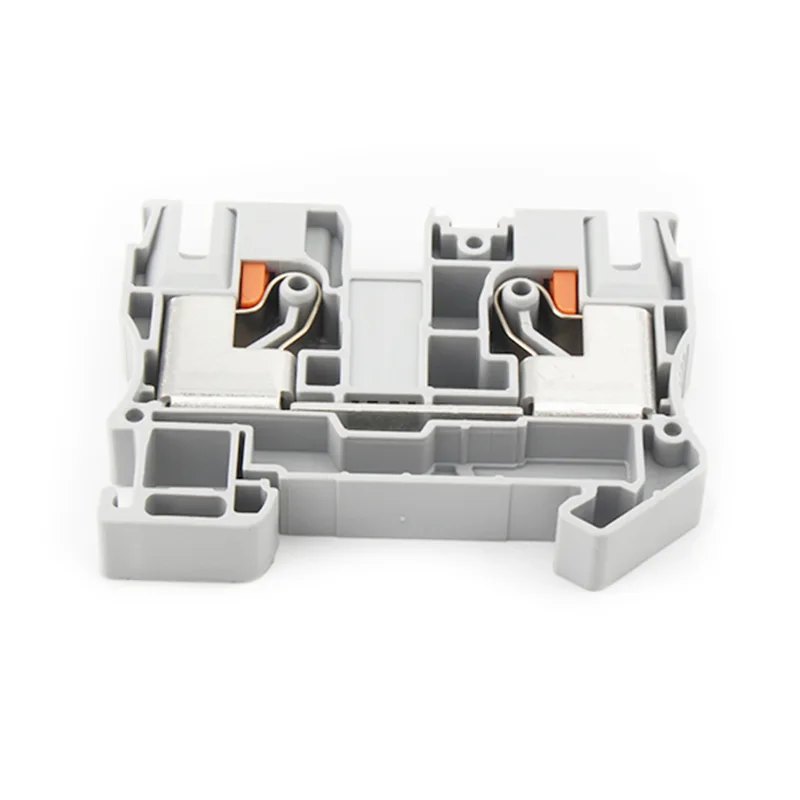

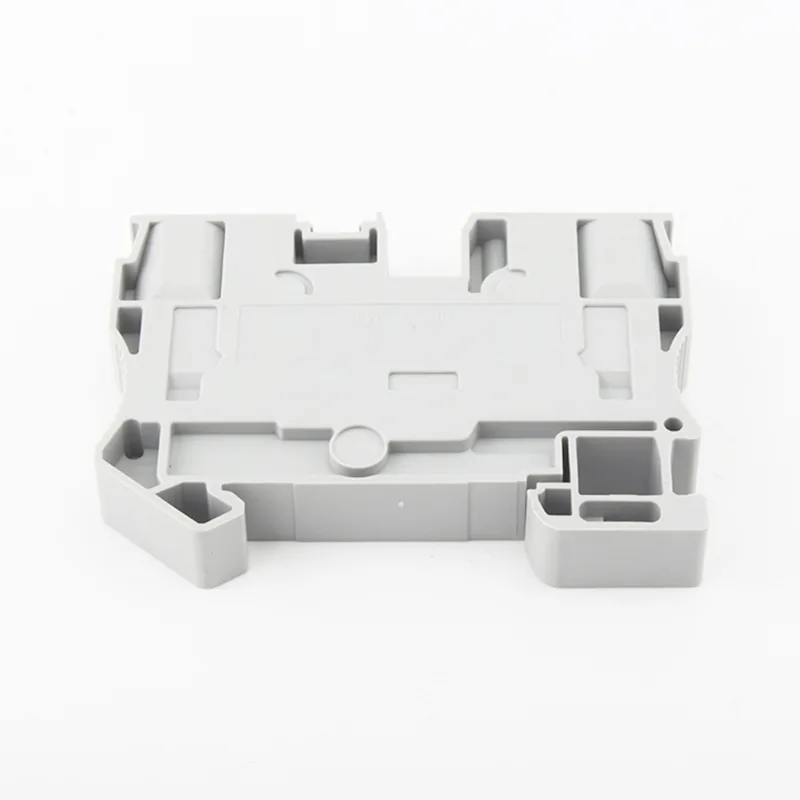

PT 10 Feed Through Din Rail Terminal Block

Engineered for high-power applications, the PT 10 Feed Through Din Rail Terminal Block stands out with its 800 V rated voltage and 76 A rated current. This capability allows it to move beyond typical auxiliary roles and reliably manage main power distribution in automation systems and key control circuits within electrical distribution setups.

The PT 10 Feed Through Din Rail Terminal Block incorporates push-in connection technology that simplifies wiring—no tools are needed. Users can insert a prepared wire directly, and the integrated spring-clamp mechanism locks it securely. Compared to screw-type connections, this innovation boosts efficiency dramatically, cutting wiring time by up to 80% and reducing insertion force by about half. The result is faster integration and lower labor effort.

Practicality is central to its design. With a slim front width of 10.2 mm, the PT 10 Feed Through Din Rail Terminal Block maximizes space in tight control cabinets without compromising accessibility. It has also demonstrated proven performance in challenging settings, particularly in rail transit, where it meets railway vehicle standards for vibration and shock resistance. This ensures dependable operation in critical onboard systems even under continuous motion.

Supporting a wide wire range (0.5–16 mm² / 20–6 AWG), the PT 10 Feed Through Din Rail Terminal Block delivers strong mechanical and environmental resilience, verified by tests including vibration, shock, high-voltage withstand (8 kV impulse), and temperature rise.

Product Parameter (Specification)

Product Application

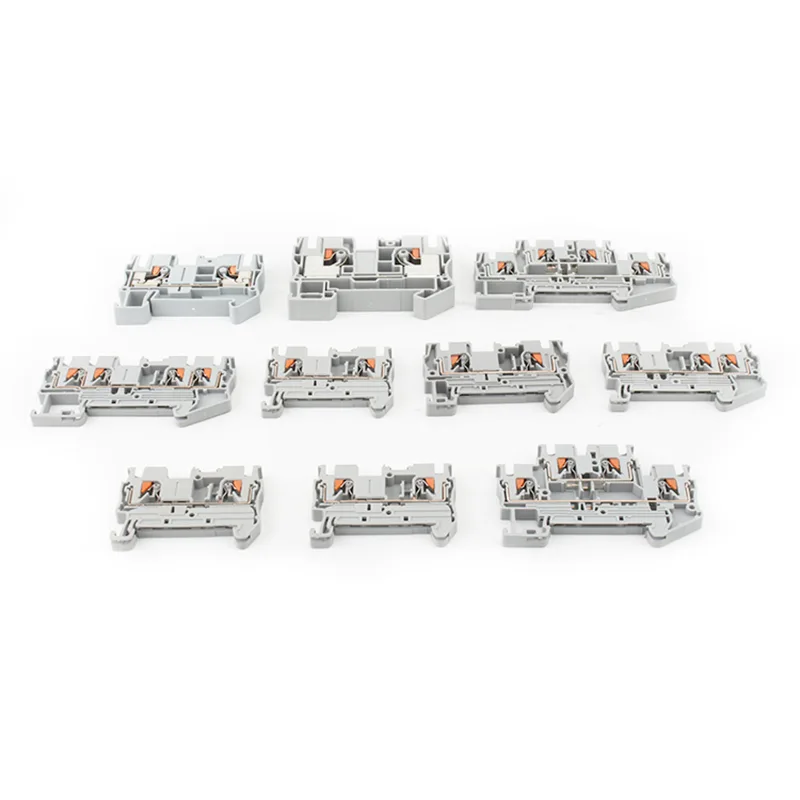

With the PT 10 Feed Through Din Rail Terminal Block Series, we’ve advanced terminal block technology to offer outstanding efficiency, reliability, and ease of use. This series revolutionizes installation workflows while ensuring consistently high electrical and mechanical performance.

Material Advantage

Crafted for safety, our PT 10 Feed Through Din Rail Terminal Block provides excellent dielectric strength and dependable creepage and clearance distances. Many models feature halogen-free construction, which limits toxic fume emissions in fire scenarios, offering enhanced protection for people and critical equipment.

Product Advantages

The defining advantage. Solid or ferruled conductors are terminated with a simple, direct push using a standard screwdriver or a dedicated manual tool. This eliminates the traditional, time-consuming steps of loosening screws, inserting wires, and re-tightening.

Main Market

Our rail-mounted terminal blocks are sold worldwide. Our market coverage is extensive. Beyond the domestic market, we also export to countries across the Americas, Europe, and Asia. Our products are highly favored by customers.

Company

CHTAR plays a valuable economic role by creating jobs, building technical skills, and strengthening supply chains. Through local manufacturing, regional procurement, and exports, it actively supports community and regional economic growth. As a specialized industrial leader, CHTAR not only adds sector-wide value but also boosts the competitiveness of its partner industries.
