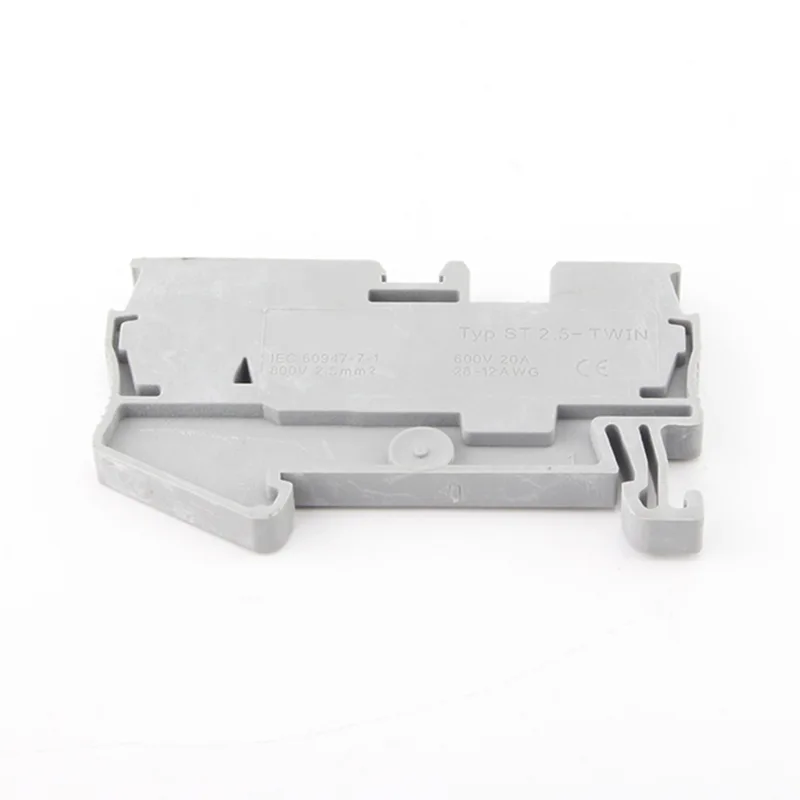

ST2.5 TWIN Spring Din Rail Terminal Block

For well-made terminals, China continues to be a strong source. At CHTAR, we focus on manufacturing wiring terminals that align with international requirements. Our ST2.5 TWIN Spring Din Rail Terminal Blocks, for instance, holds multiple approvals: CE, RoHS, CQC, SGS, and ISO 9001:2008. Engineers tell us they value its steady performance over time—and the cost remains practical even for volume projects. Drop us a line; we’re happy to explore how our products can address your application needs.

View More >> Send Inquiry >>

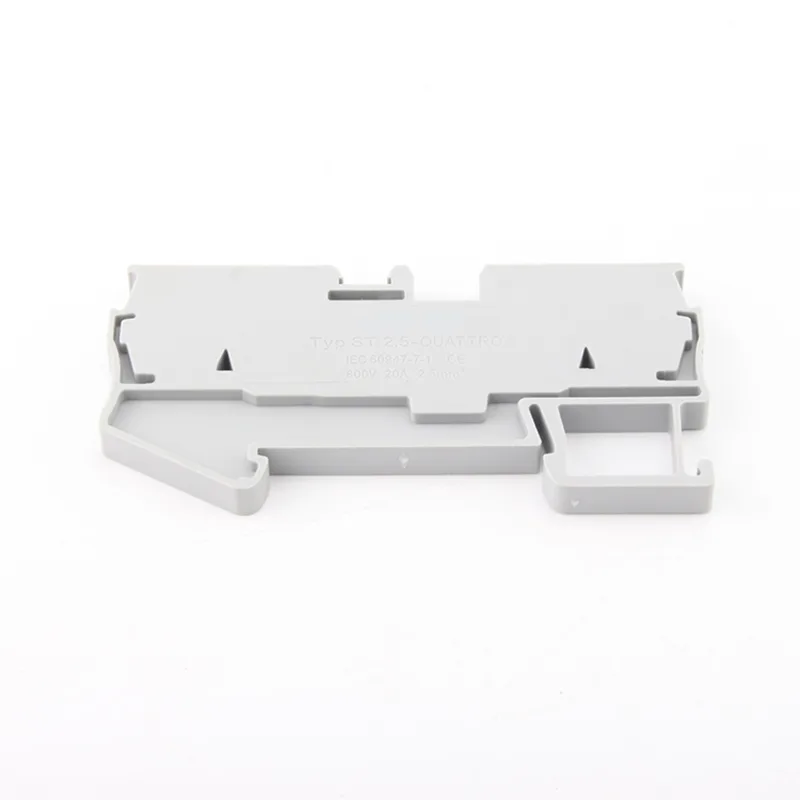

ST2.5 QUATTRO Spring Din Rail Terminal Block

If you need to connect and route four 2.5mm² wires in a tight panel space, the CHTAR ST2.5 QUATTRO Spring DIN Rail Terminal Block is designed to solve that. It features a true two-in, two-out (2-in/2-out) configuration, allowing all four conductors to be active simultaneously. This makes it ideal for splitting or combining circuits where space is at a premium. The connection is secured by its reliable cage-clamp spring mechanism, which ensures a firm, vibration-resistant grip on every wire, providing a compact and dependable branching solution.

View More >> Send Inquiry >>

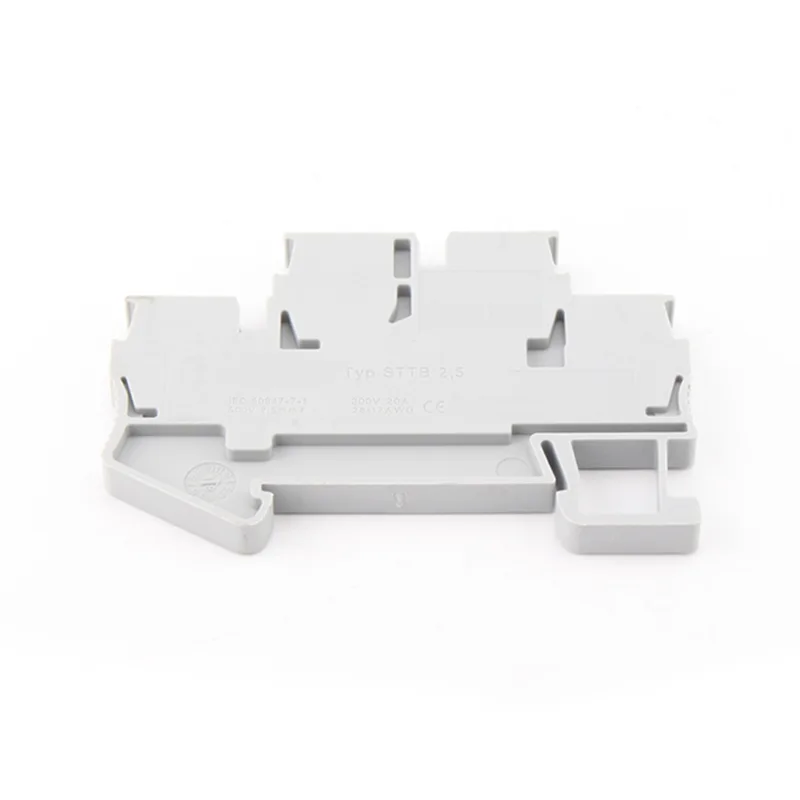

STTB2.5 Spring Din Rail Terminal Block

The CHTAR STTB2.5 Spring DIN Rail Terminal Block addresses this challenge through its space-saving, dual-level construction and outstanding compatibility with various wiring configurations. Its spring-clamp connection points accommodate a broad range: solid conductors from 0.08 mm² all the way to 4.0 mm² (AWG 28-12), and stranded wires up to 2.5 mm²—with or without ferrules. This means you can handle everything from sensitive sensor signals to more substantial control power in one unified component, simplifying your panel layout dramatically. For projects demanding both density and flexibility, it's an efficient solution. Reach out to us to discuss how it can meet your specific wiring needs.

View More >> Send Inquiry >>

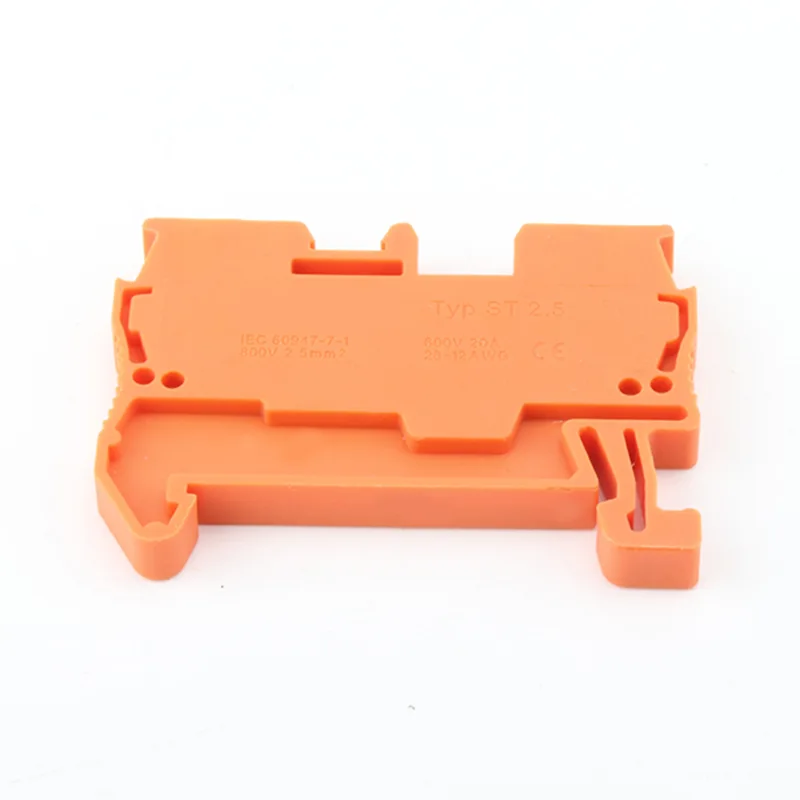

ST 2.5 Spring Din Rail Terminal Block

As engineers, we balance the need for absolute reliability with the pressure to deploy systems faster. That balance drove the design of our ST 2.5 Spring DIN Rail Terminal Block. Think of it as merging the proven reliability of a DIN rail platform with the rapid installation of a spring-clamp. We focused on making the clamp mechanism itself exceptionally durable—because a spring connection is only as good as its material and design. The result is a terminal block that’s perfect for control panels in infrastructure or automation, where you need to make hundreds of connections quickly without second-guessing their long-term stability. It’s about working smarter.Reach out, and we’ll walk you through the specs and test data.

View More >> Send Inquiry >>

What is application of advanced spring din rail terminal block?

Spring din rail terminal block is ST series terminal blocks and engineered for application demanding high reliability, rapid installation, and resilience in challenging environments. Fashion spring din rail terminal blocks are particularly favored where screw terminals pose a risk.

China spring din rail terminal blocks factory supply products with CE certificates. Hot selling spring din rail terminal blocks provide one year warranty. Customer can contact us with any quality issues.

Product Parameter (Specification)

	Screw din rail terminal block	Spring din rail terminal block	Feed though din rail terminal block
Material of shell	PA	PA	PA
Conductive	Copper	Copper	Copper
Stitching method	screw	spring	spring
Tool	Screw driver	Screw driver	/
Color	Grey,black, red, yellow,green,orange and so on
Wire size	1.5-240mm2	1.5-10mm2	1.5-10mm2
Din rail	G type and U type din rail
Certificate	CE,RoHs,CQC,SGS,ISO9001:2008
Service	OEM,ODM		OEM,ODM

Durable spring din rail terminal block features a precision-engineered spring clamp that creates a gas-tight, maintenance-free connection simply by inserting solid or stranded wires using a standard screwdriver or dedicated tool, reducing wiring time by up to 50% compared to screw-type blocks.

As a China supplier, CHTAR spring din rail terminal block eliminates human error from over-tightening and provides factory-set clamping force for optimal conductivity and long-term reliability. The fully insulated design and front-actuated spring keep fingers safely away from live parts.

CHTAR offers multiple shell color options for customers, with popular colors including grey, blue, and yellow. The blocks support wire gauges from 1.5 mm² to 10 mm² and are suitable for various wiring applications.

Many variants include integrated test points for voltage measurement without disconnecting wires, along with clear viewing windows for easy visual inspection. Wires can also be quickly released using a tool or screwdriver for circuit changes or troubleshooting.

Who are CHTAR?

We are manufacturer and supplier of kinds of wire connectors, heavy duty connectors, quick wire connectors and din rail terminal blocks and so on. We are a manufacturer to produce low prices connectors for wiring connection. Our factory is located in Yueqing, Zhejiang, China.

Chtar is a professional Spring Din Rail Terminal Block manufacturer and supplier in China. Welcome to import quality products from our factory here.
