4/5 Pin MTG Heavy Duty Connectors

CHTAR is a professional 4/5 Pin MTG Heavy Duty Connectors manufacturer and supplier from Zhejiang in China. We have been specialized in heavy duty connectors for many years. Our products have competitive prices advantage and cover most of countries markets. We are looking forward to become your reliable and long-term partner in China.

Send Inquiry

Product Description

This CHTAR high-quality 4/5 Pin MTG Heavy Duty Connectors is widely used in the HA series HDC connectors. It has obtained CCC, CE, ROHS, RU, CSA and TUV certifications. From a design perspective, it is made of zinc alloy, which is different from other connectors that use aluminum casings. Not only that, CHTAR's connectors can also be customized according to the cable size and length of automotive wiring harnesses to meet customers' efficient requirements.

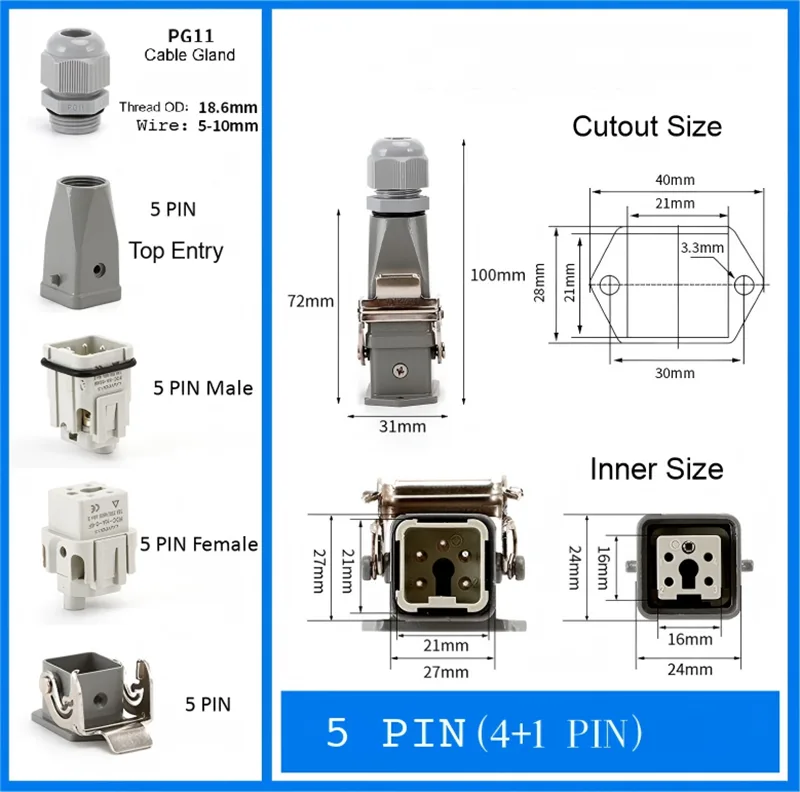

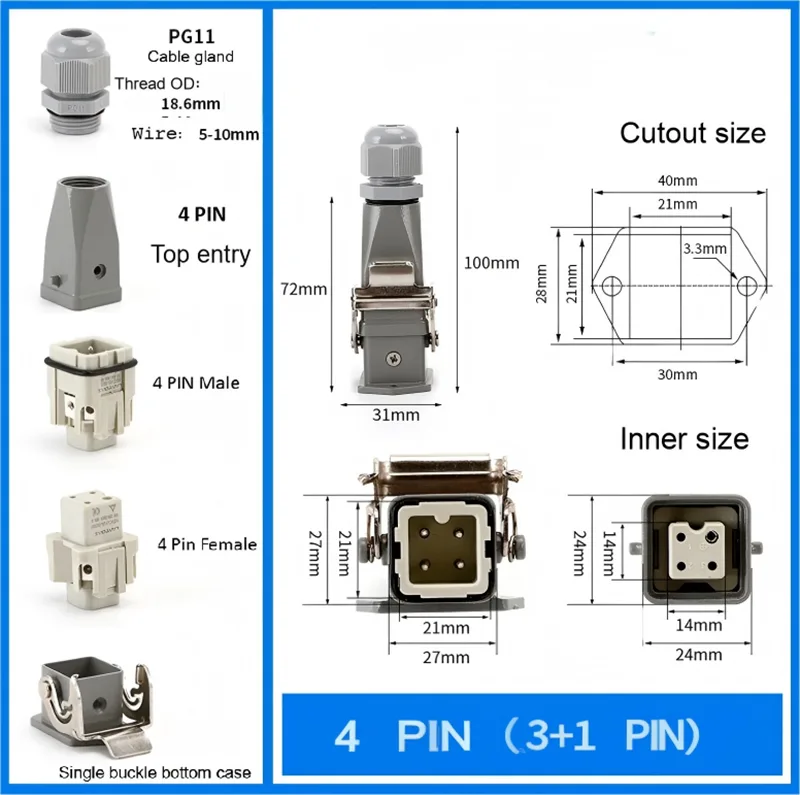

Product Parameter (Specification)

Item	H3A-MTG
Compatible	Harting Han 3A size
Brand	CHTAR
Material	Zinc alloy
Finish	Powder-coated
Color	RAL 7037 (grey)
Locking Type	Single Lever
Thread	PG11
Working Temperature	-40℃- +125℃
Waterproof degree	IP65
Certificate	CE, RoHs, CQC, SGS, ISO9001:2008
Service	OEM,ODM

Product Feature

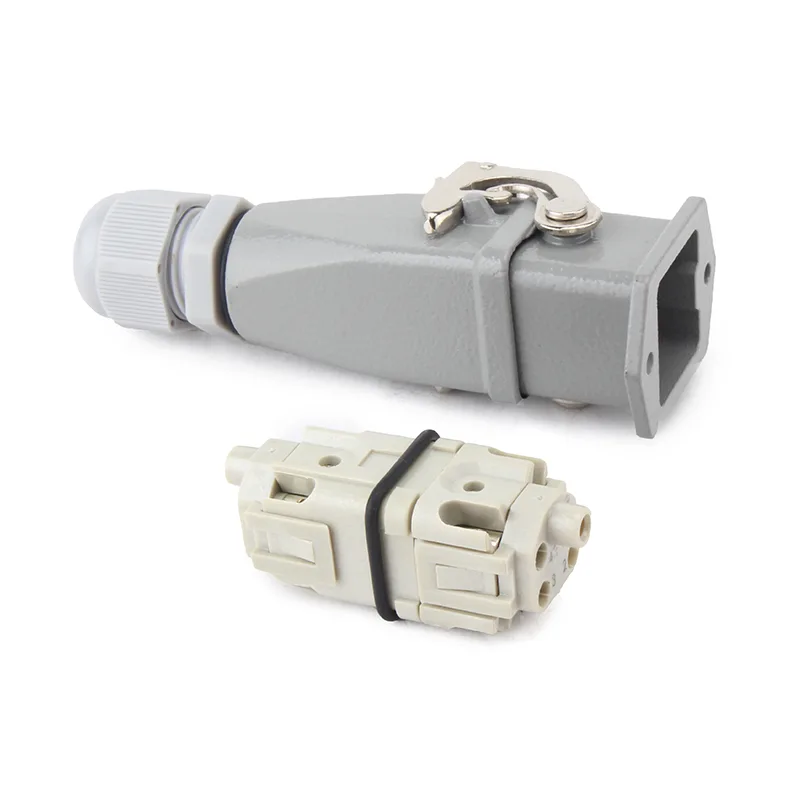

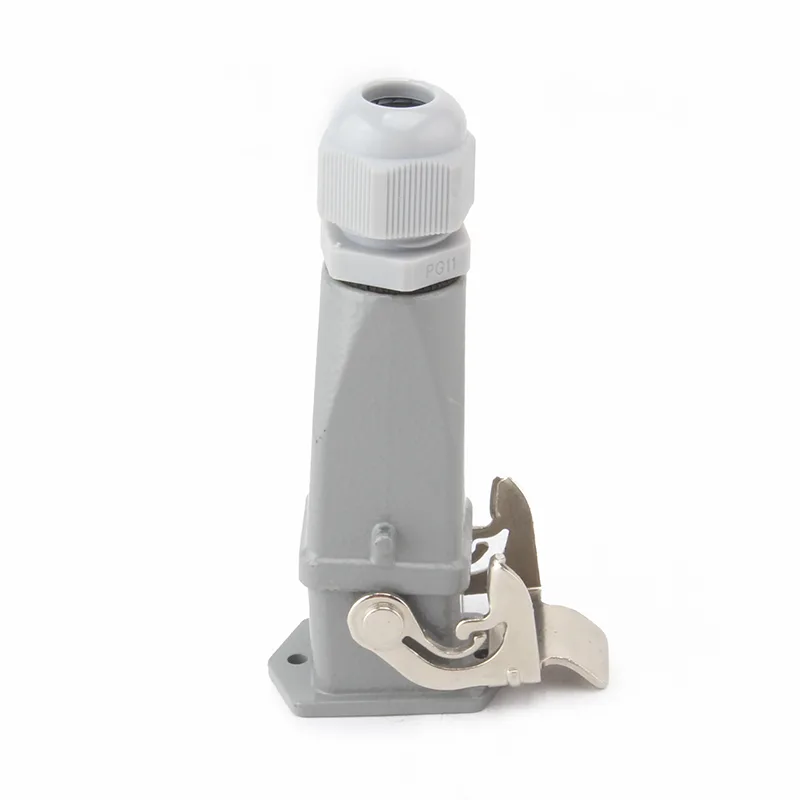

4 5 Pin MTG Heavy Duty Connectors can be used both for 3P (3+1pin) and 4P (4+1pin) HA heavy duty connectors. Our pins are all silver-plated, offering superior electrical conductivity. They will be matched with cable gland. We have PG13.5 and M20 available for selection. It is made of zinc alloy hardly heavy duty connector housing.

4/5 Pin MTG Heavy Duty Connectors

Product Application

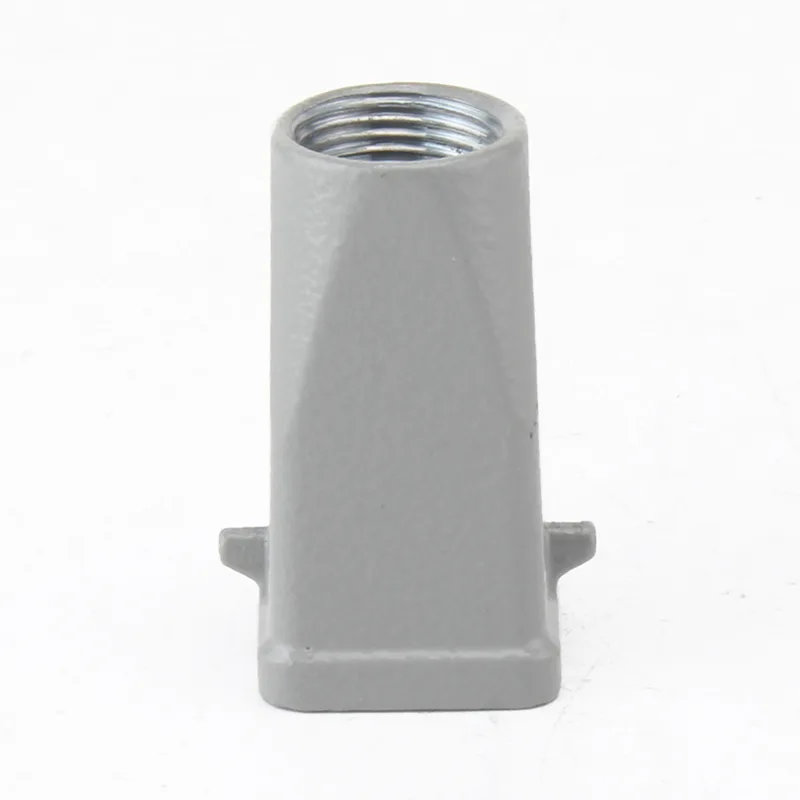

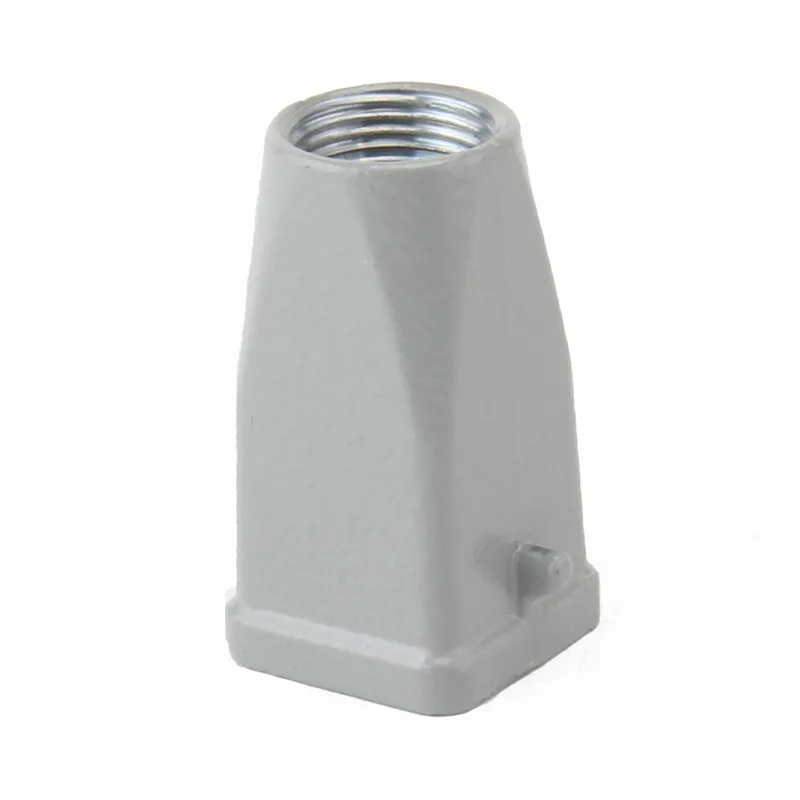

4 5 Pin MTG Heavy Duty Connectors are widely used in various industries. For example, they are used in the following equipment of automotive assembly lines: body forming systems, welding robots, control cabinets, intelligent control systems, assembly line conveying systems, drive beam adjustment systems, metal beam combination systems, etc. Our heavy-duty connector housings are made of zinc alloy and treated with powder coating, which can effectively prevent mechanical stress and protect against erosion by water and dust.

Delivery time

We have stock for most of our parts of heavy duty connectors. We can provide you in very short time. Normally we can delivery within 3-5 days. If big order quantity, we will delivery according to customers requests.

Our factory is located closed to Ningbo and Shanghai, offering the advantage of proximity to ports for swift shipping.

Company

Our company has a professional sales team. Our sales representatives have over 15 years of experience in export business operations. The company possesses over 10 years of production expertise of heavy duty connectors.
