4/5 Pin MAG Heavy Duty Connectors

As a leading supplier in the field of industrial automation, CHTAR offers a full range of heavy-duty connector products, like 4/5 Pin MAG Heavy Duty Connectors, to meet various demands, from standard to high power, and from compact to multi-core configurations. We have our own factory. We have been focusing on the field of heavy-duty connectors for more than ten years. Our products are trusted by customers from various industries for their excellent environmental adaptability and stable electrical performance. We look forward to cooperating with you in the near future.

Send Inquiry

Product Description

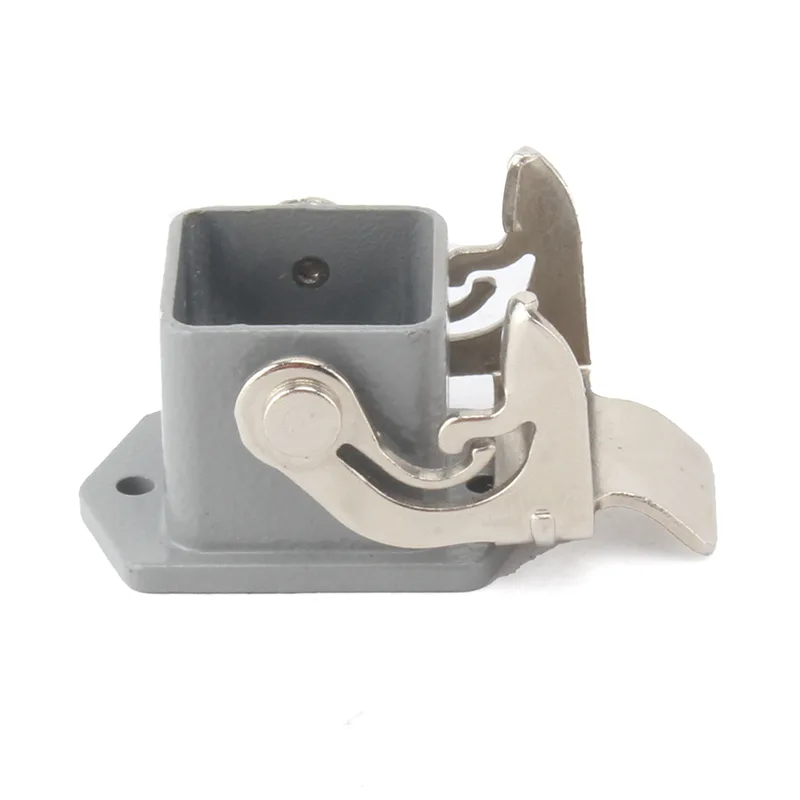

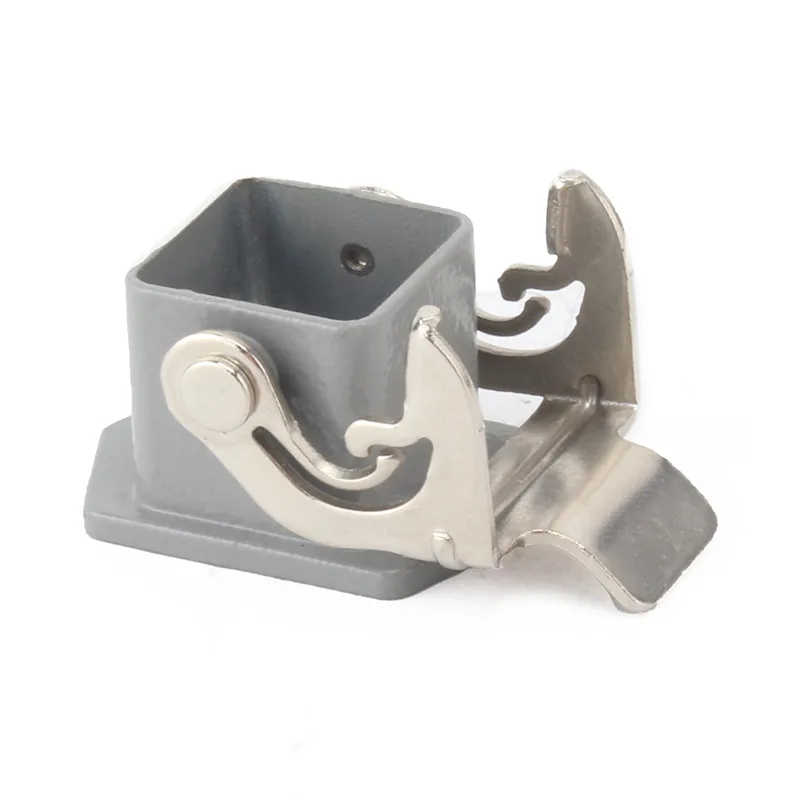

CHTAR offers high-quality 4/5 Pin MAG Heavy Duty Connectors that meet international standards at highly competitive prices. The 10A H3A-MAG housing heavy-duty connector is the female part of the housing and is used in conjunction with the H3A-MTS and H3A-MTG. It adopts HA 4-pin and 5-pin heavy-duty connectors. The material of the H3A MAG heavy-duty connector is high-quality zinc alloy. Our products are sold in various markets and industry fields. We offer high-quality products that meet international standards at highly competitive prices.

Product Parameter (Specification)

Item	H3A-MAG
Compatible	Harting Han 3A size
Brand	CHTAR
Material	Zinc alloy
Finish	Powder-coated
Color	RAL 7037 (grey)
Locking Type	Single Lever
Thread	PG11
Working Temperature	-40℃- +125℃
Waterproof degree	IP65
Certificate	CE, RoHs, CQC, SGS, ISO9001:2008
Service	OEM,ODM
Matched Insert	HA-003-M/F HA-004-M/F

Product Feature

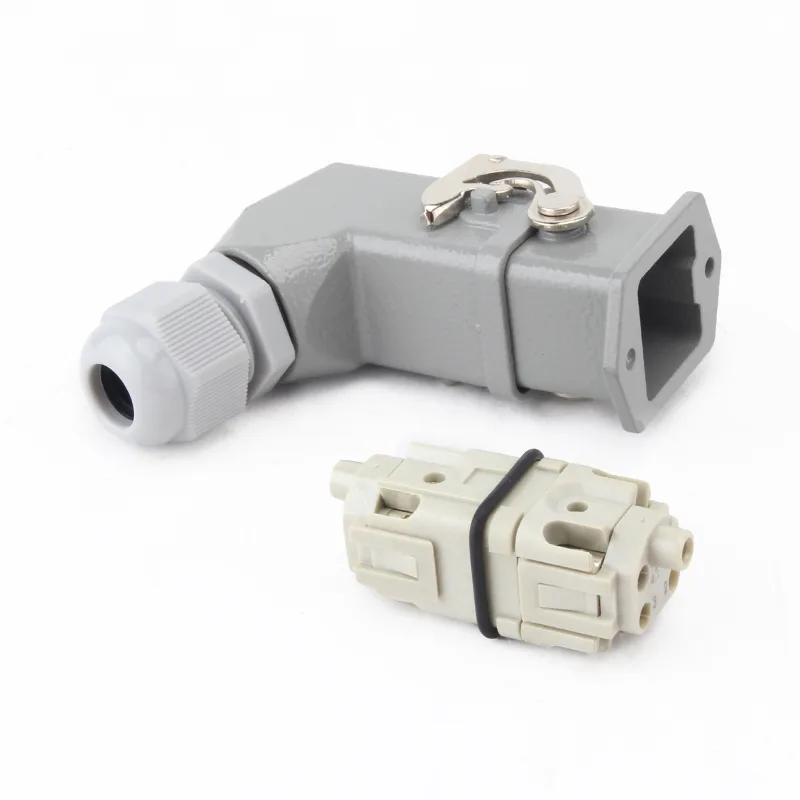

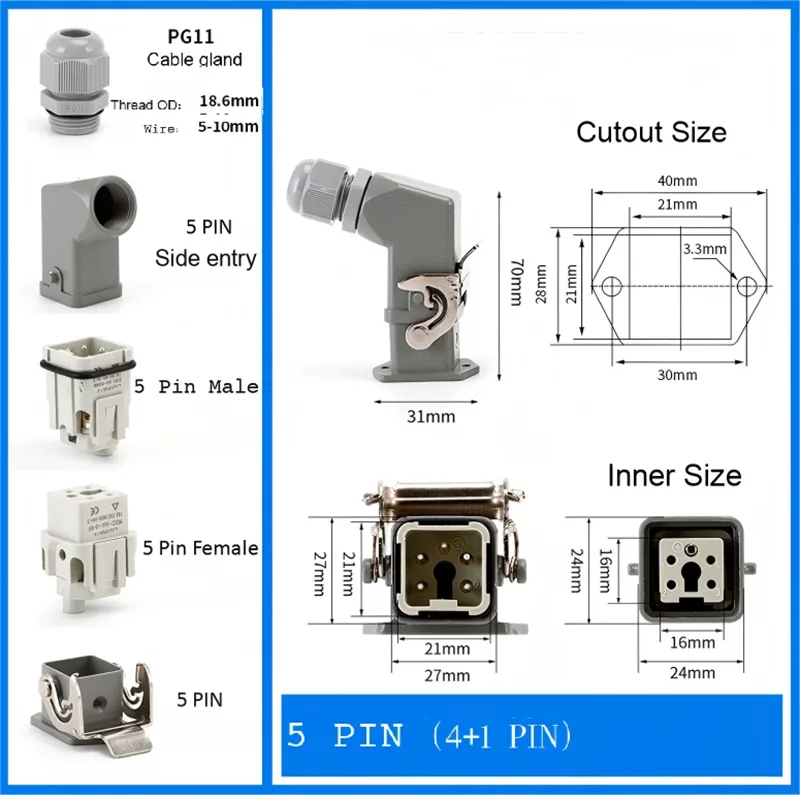

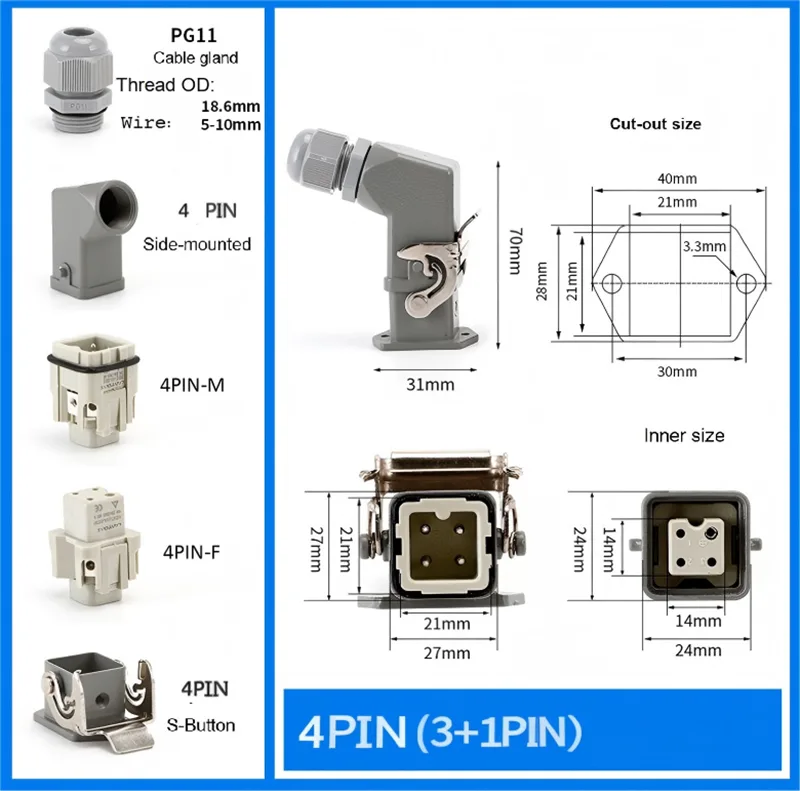

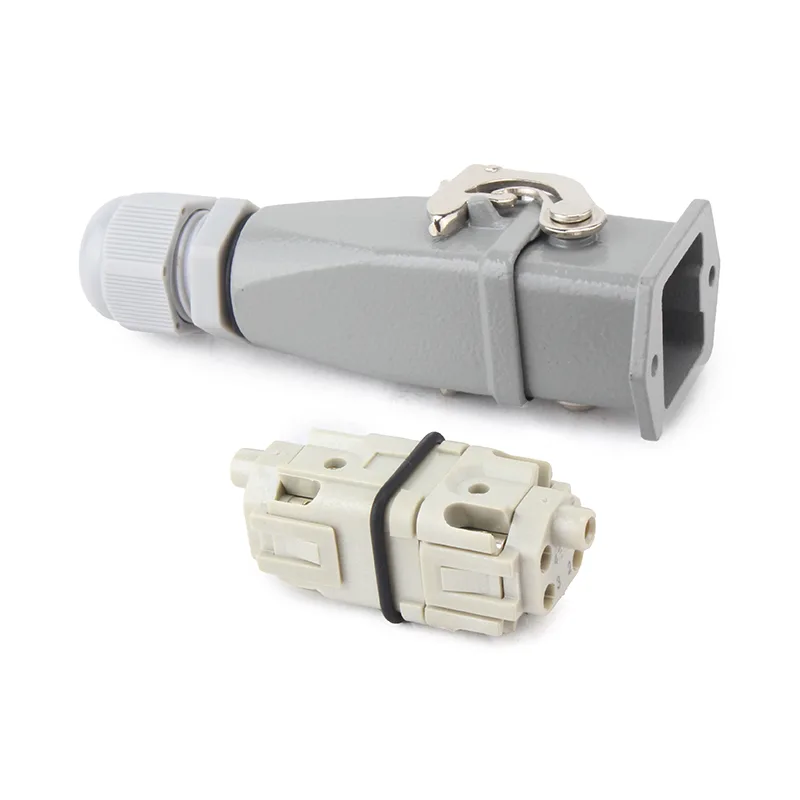

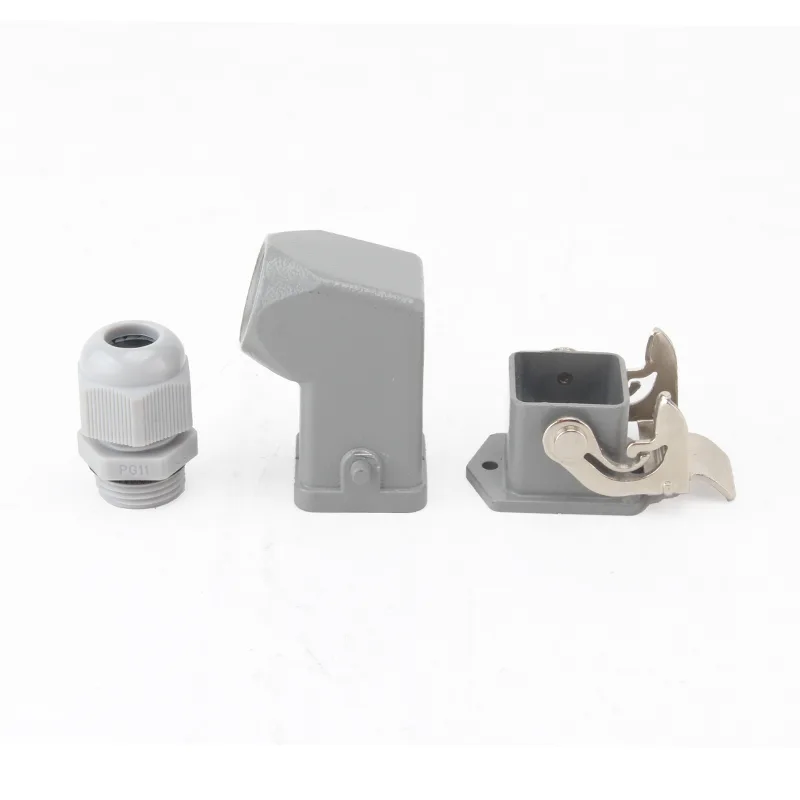

4/5-pin MAG Heavy Duty Connectors can be used for 4P (3+1 Pin) and 5P (4+1 pin) HA heavy-duty connectors. The side-entry connection method is adopted. All pins are silver-plated and have good electrical conductivity. Of course, you can also use different thread sizes to match cable connectors of different sizes for wire connection.

4/5 Pin MAG Heavy Duty Connectors

Production Equipment

CHTAR has an automatic screw assembly machine. We also have punch presses, riveting machines and so on. So we can create unlimited possibilities!

Production Application

HA range of Heavy duty connectors are used for small size position wire connection . There are 3+1P,4+1P,10P and 16P for your choosing. It can be matched with top-entry housing and side-entry housing.
