16 Pin TS Heavy Duty Connectors

Located in Yueqing, Wenzhou, China, there is a professional manufacturer of 16 Pin TS Heavy Duty Connectors named CHTAR. As Yueqing is a professional production base for low-voltage electronic components, one of the reasons why we can take the leading position is that our company is equipped with complete supporting facilities and has over ten years of experience in the production of heavy-duty connectors. Because we can produce independently, we have a significant advantage in terms of cost. We are very much looking forward to becoming your reliable partner in China.

Send Inquiry

Product Description

As an outstanding supplier of heavy-duty connectors, CHTAR designs and produces 16 Pin TS Heavy Duty Connectors that are suitable for various specifications of heavy-duty connectors such as HE, HD, HEE, and HDD. It is made of aluminium and treated with powder coating, with a color of RAL7037 grey.

Product Parameter (Specification)

Item	H16B-TS
Compatible	Harting Han 16B size
Brand	CHTAR
Material	Aluminum
Finish	Powder-coated
Color	RAL 7037 (grey)
Locking Type	Single Lever
Thread	PG16
Working Temperature	-40℃- +125℃
Waterproof degree	IP65
Certificate	CE, RoHs, CQC, SGS, ISO9001:2008
Service	OEM,ODM

Product Feature

It can be matched with 16 Pin inserts, for example ,screw type inserts HE-016-M and HE-016-F. Or other types , such as HD, HDD, HEE, HSB and so on . It can be assembled with male or female parts. It is up to production using area. 16 Pin TS Heavy Duty Connectors is IP65 waterproof connectors housing. There are also PG type MG type cable gland to work together . Our normal is assembled with PG21 what is for cable size 13-18mm.

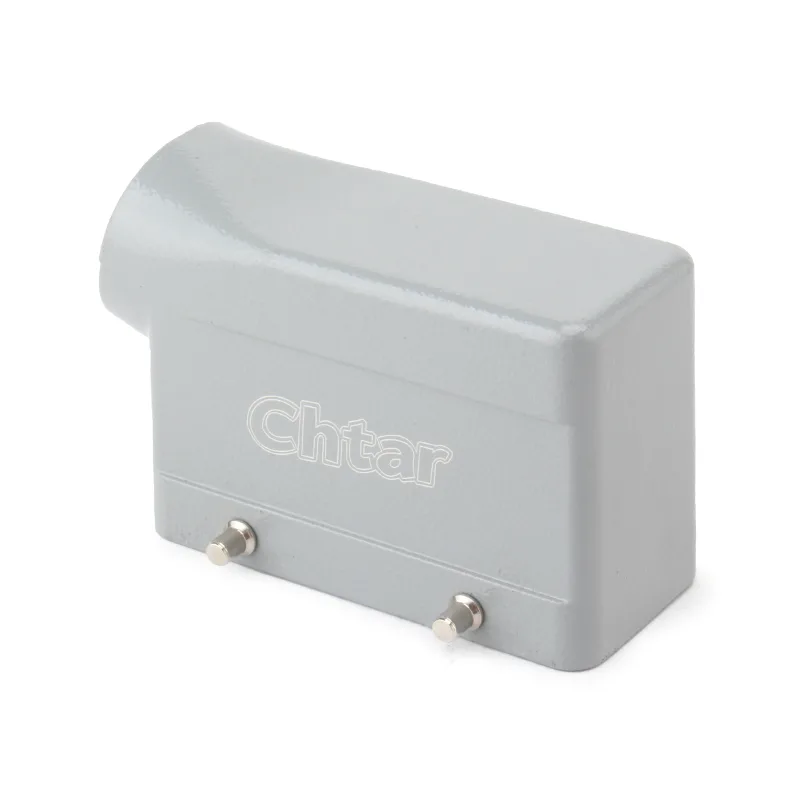

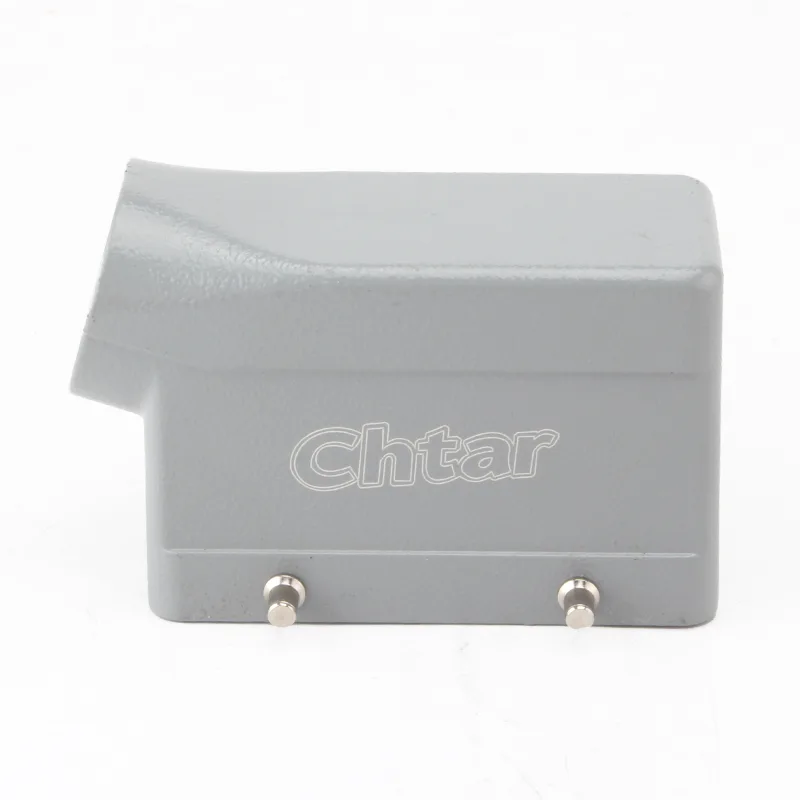

16 Pin TS Heavy Duty Connectors

Price advantage

We are manufacturer and produce components by ourself. We can control cost better than trading company. We will provide good prices of heavy duty connectors. We also can provide same prices with customers logo.

Certificate

Our factory have pass ISO9001 audit and got the certificate . It means we are professional factory . Our heavy duty connectors have CE certificates. It means our products are matched Europe quality standard .

Material Advantage

Our material are from famous brand factory. We use one time material to provide high quality connectors. 16 Pin TS Heavy Duty Connectors are made brass pins with silver plating to provide well connection features.

Hot Tags: 16 Pin TS Heavy Duty Connectors, Heavy Duty Connectors Manufacturer, TS Connectors Supplier
