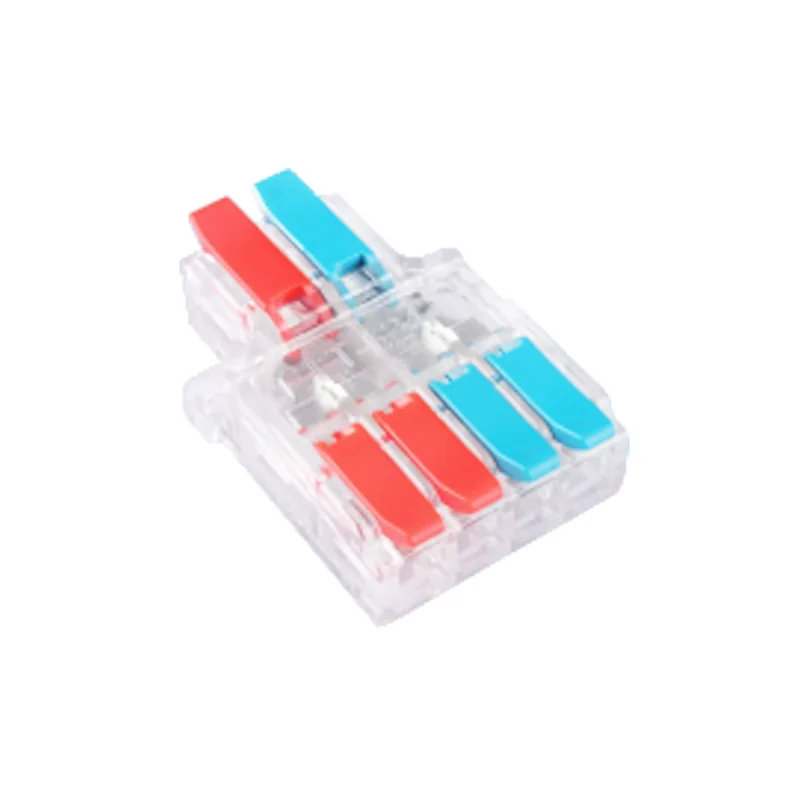

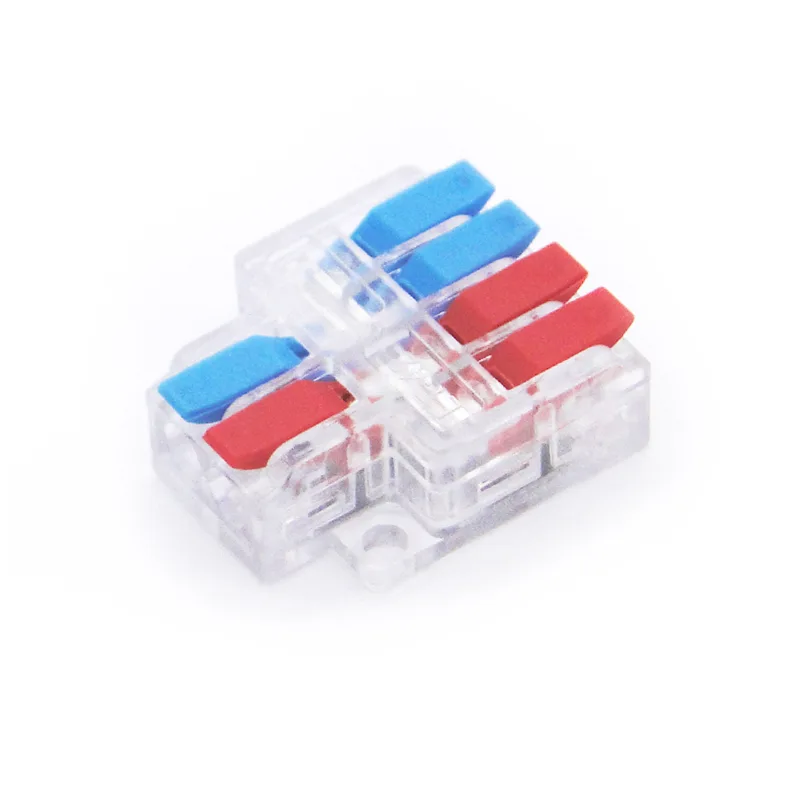

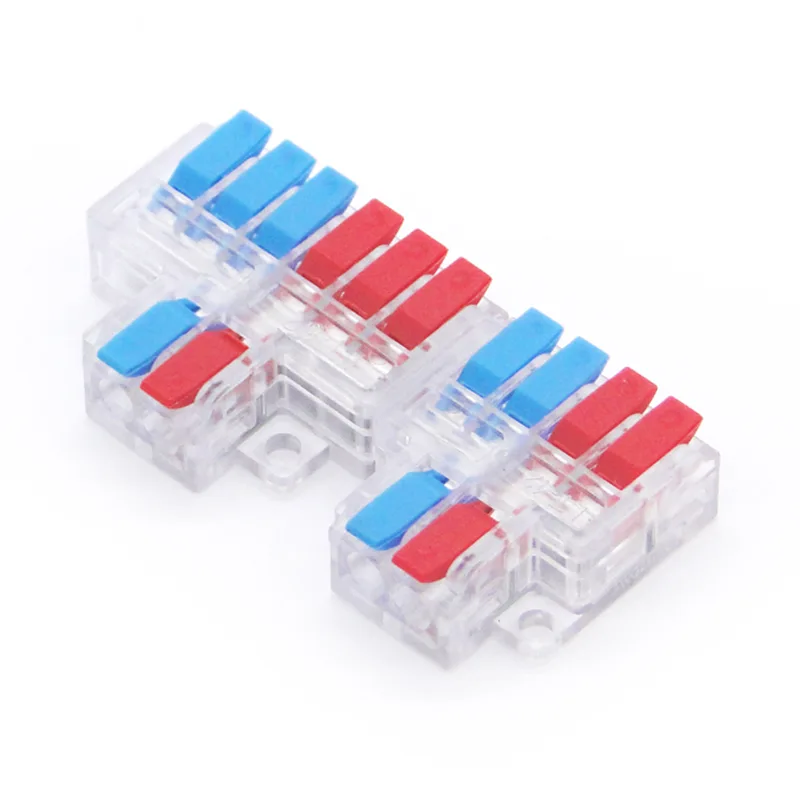

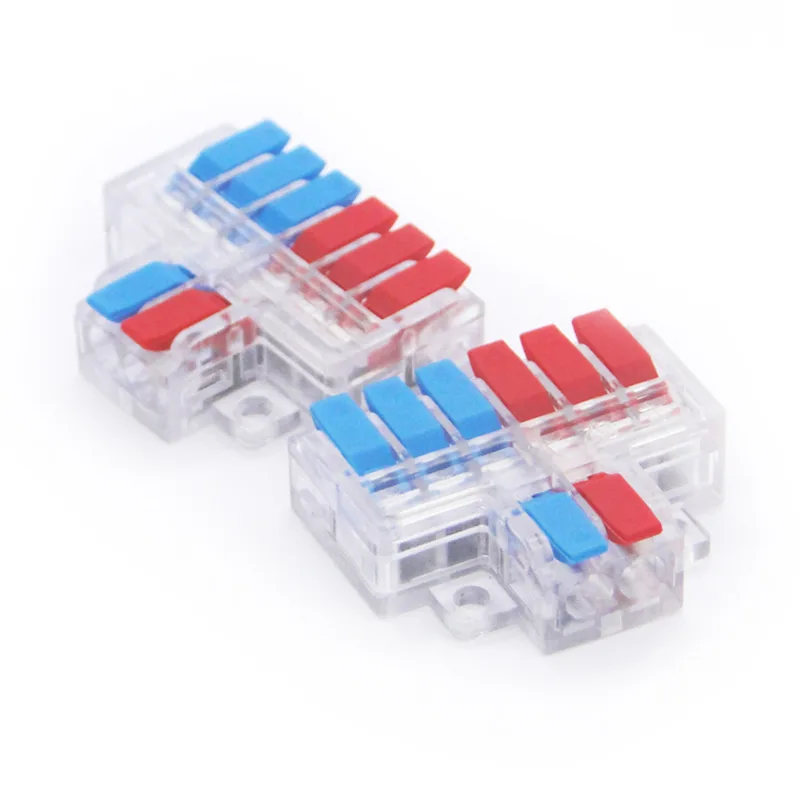

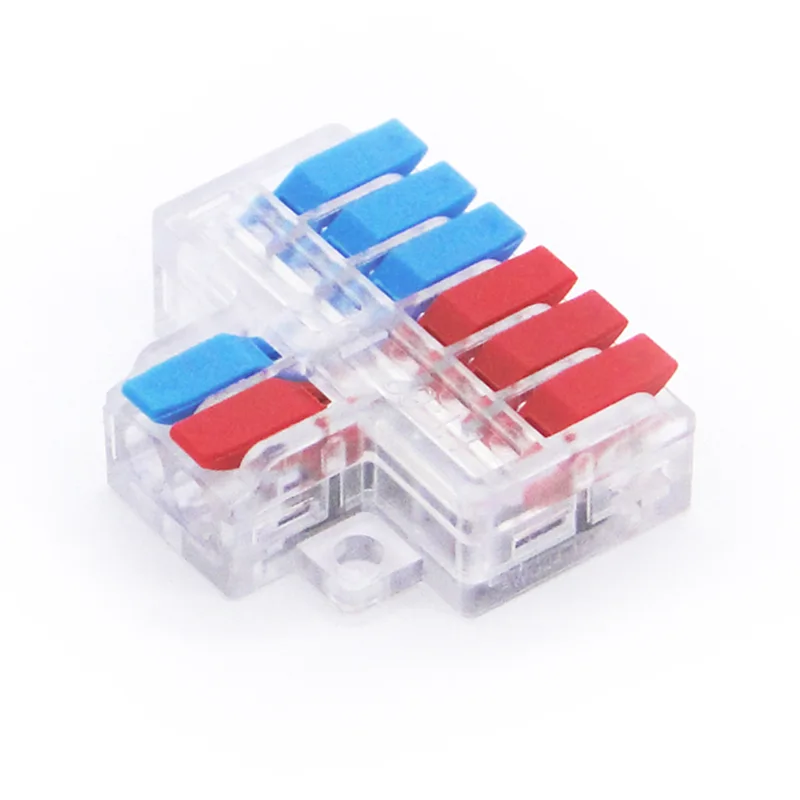

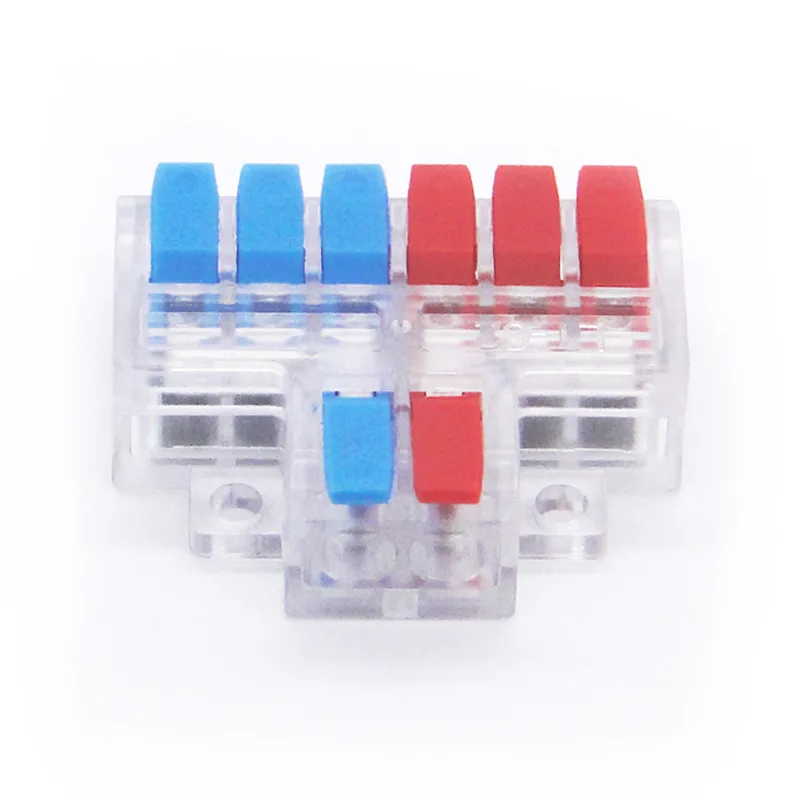

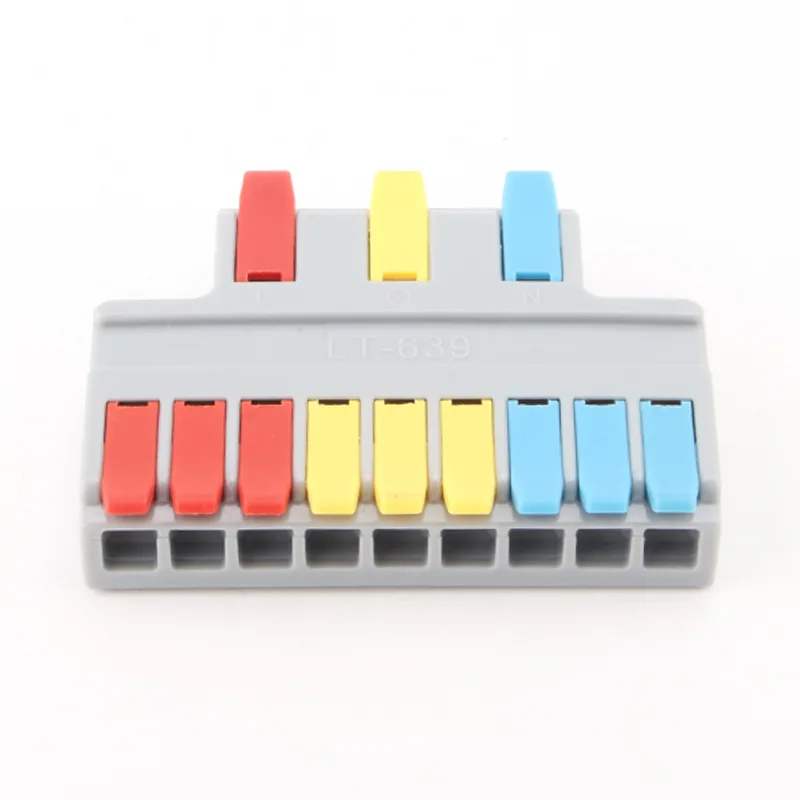

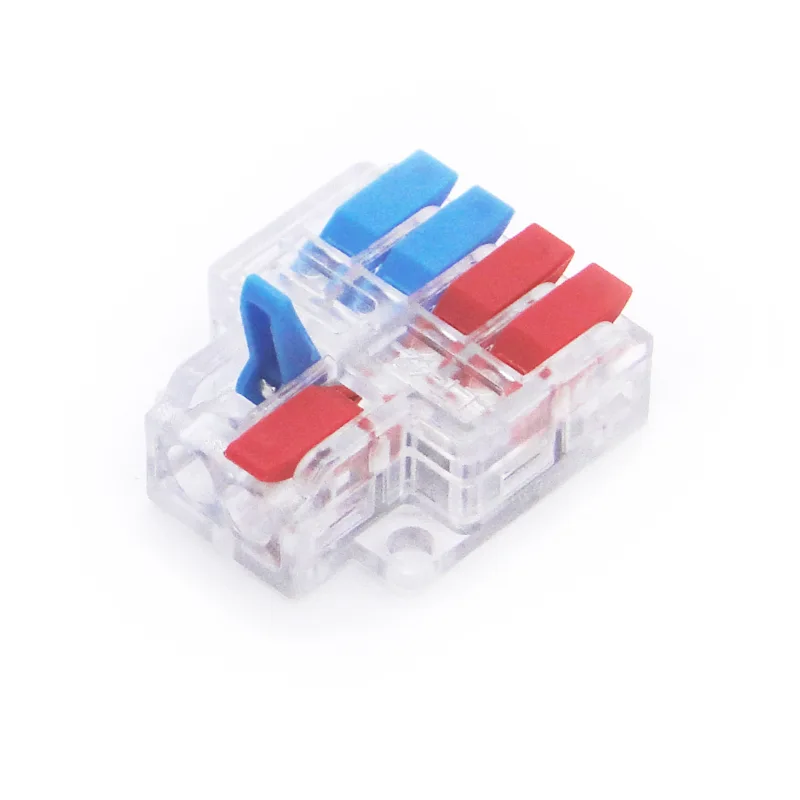

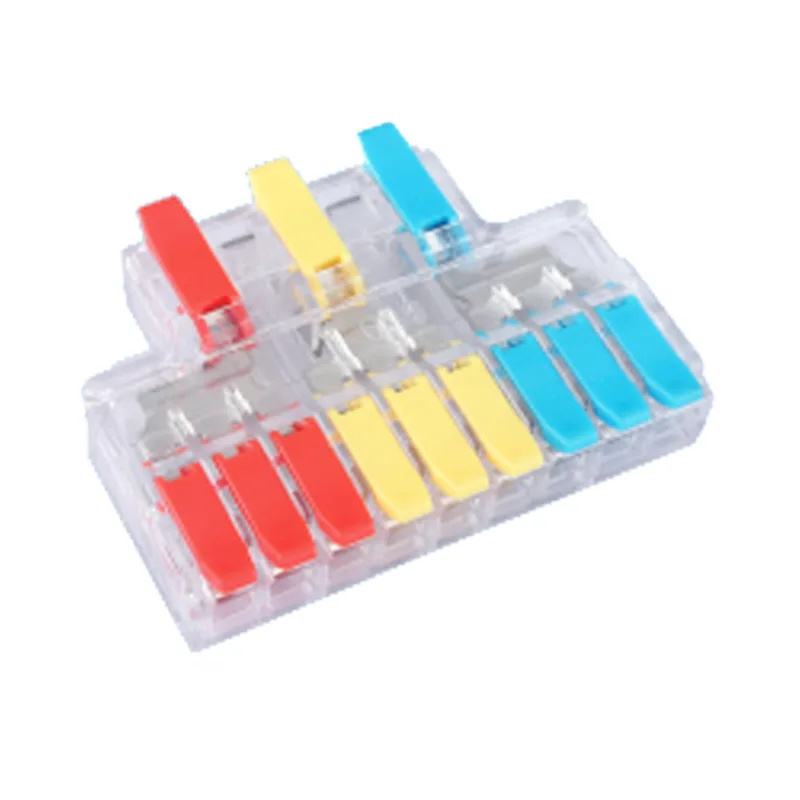

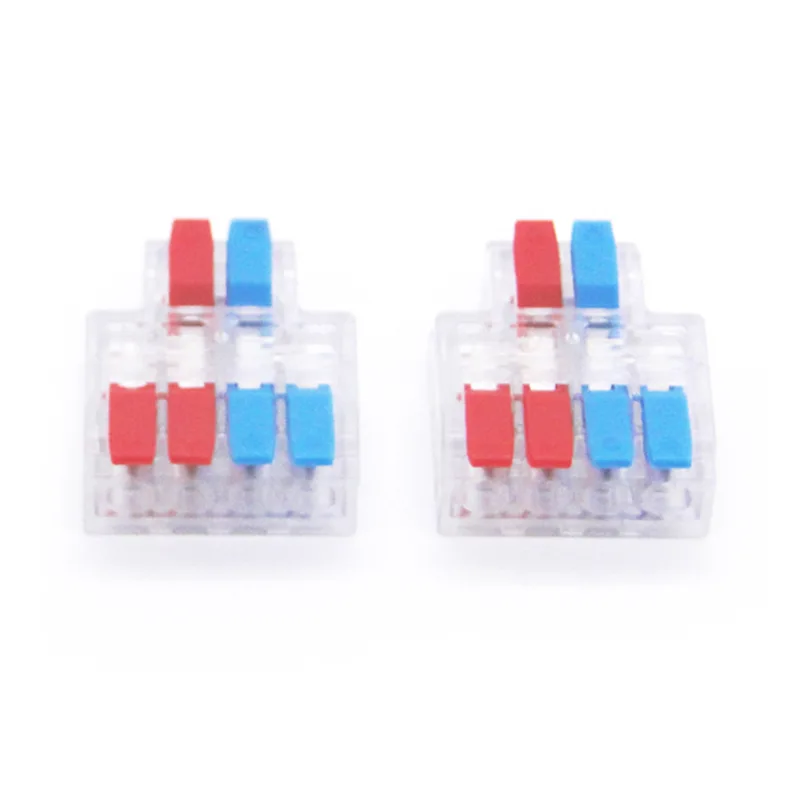

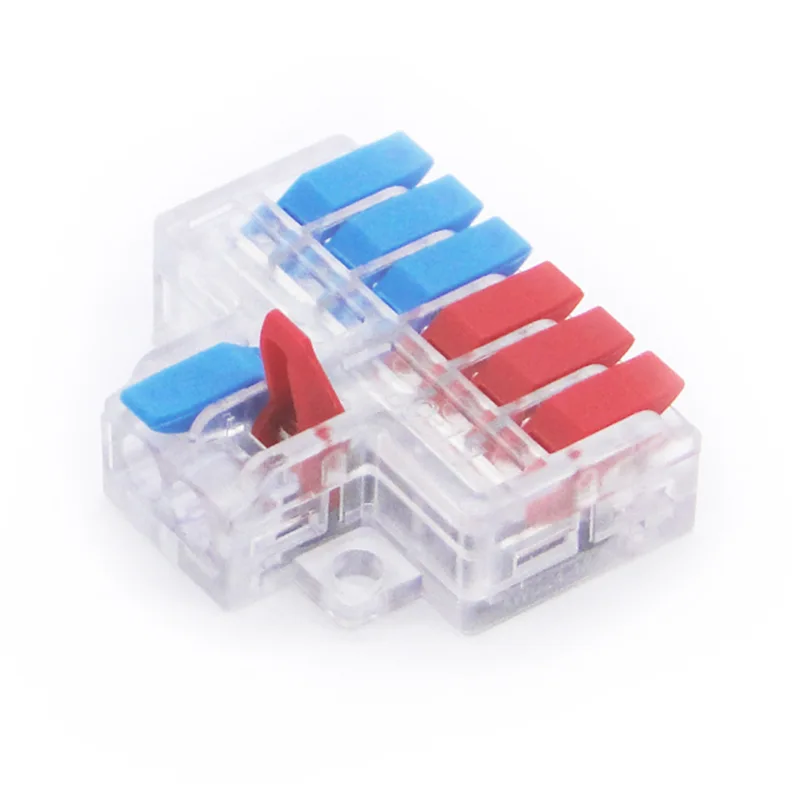

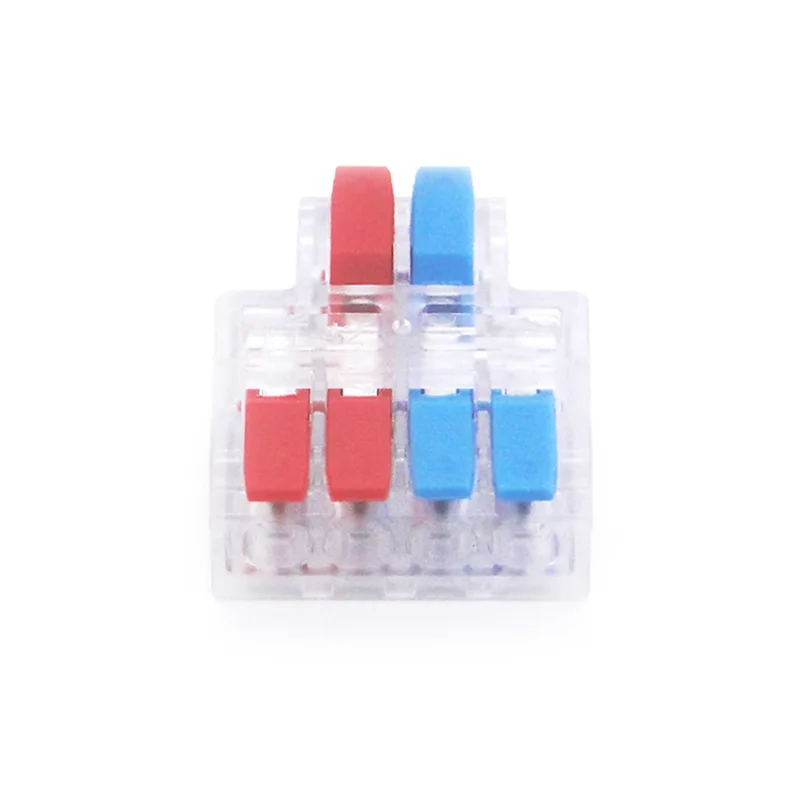

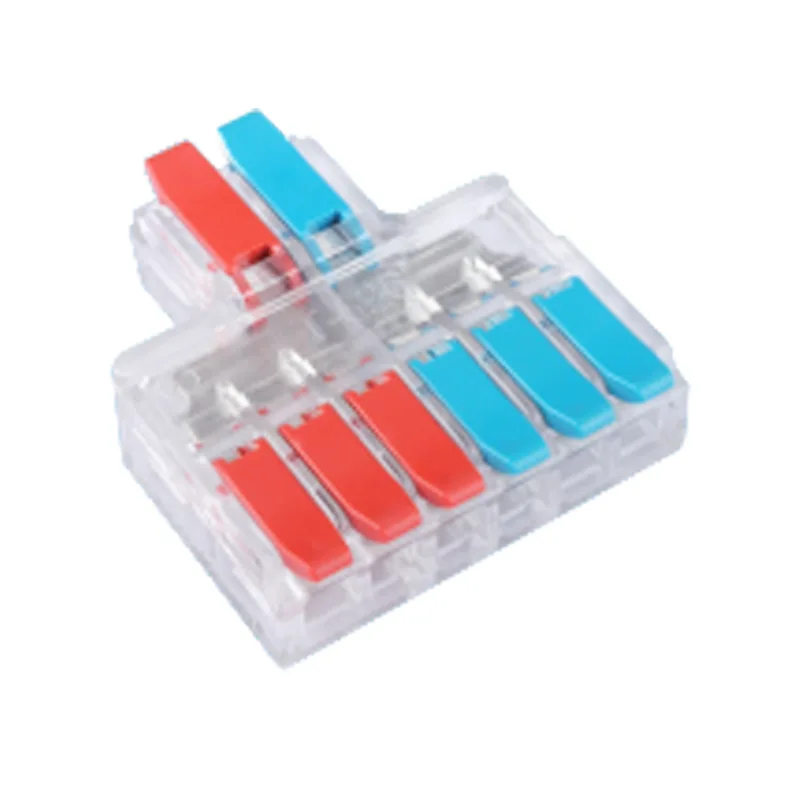

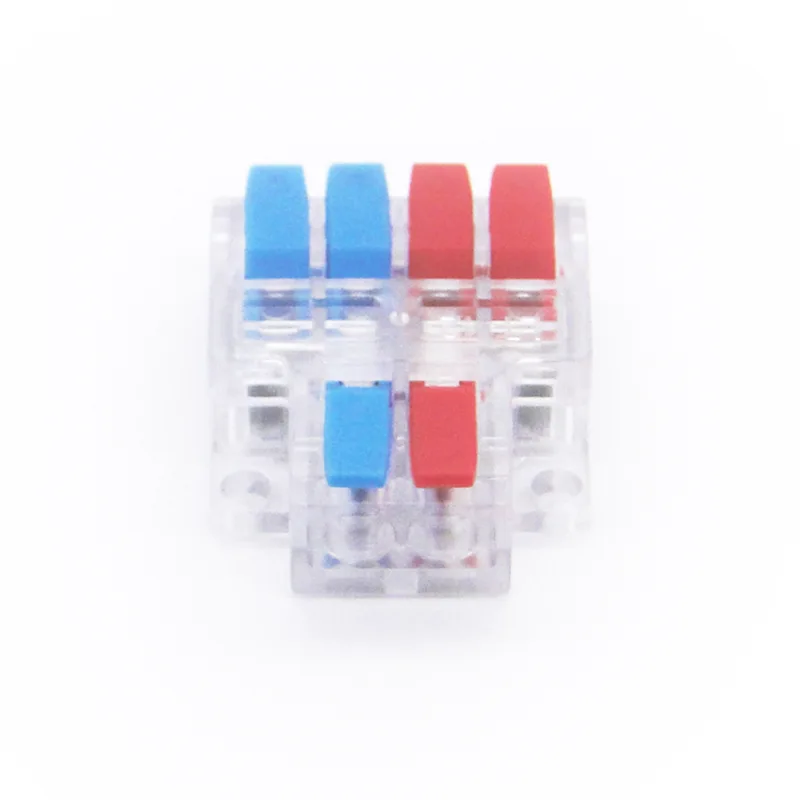

Two-in Four-out Splicing Wire Quick Connectors

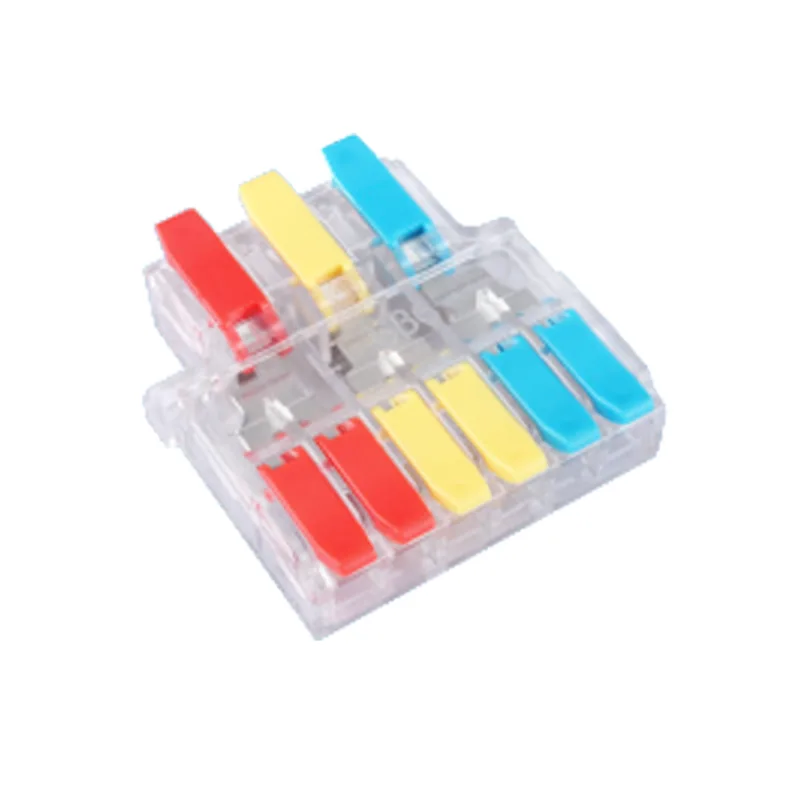

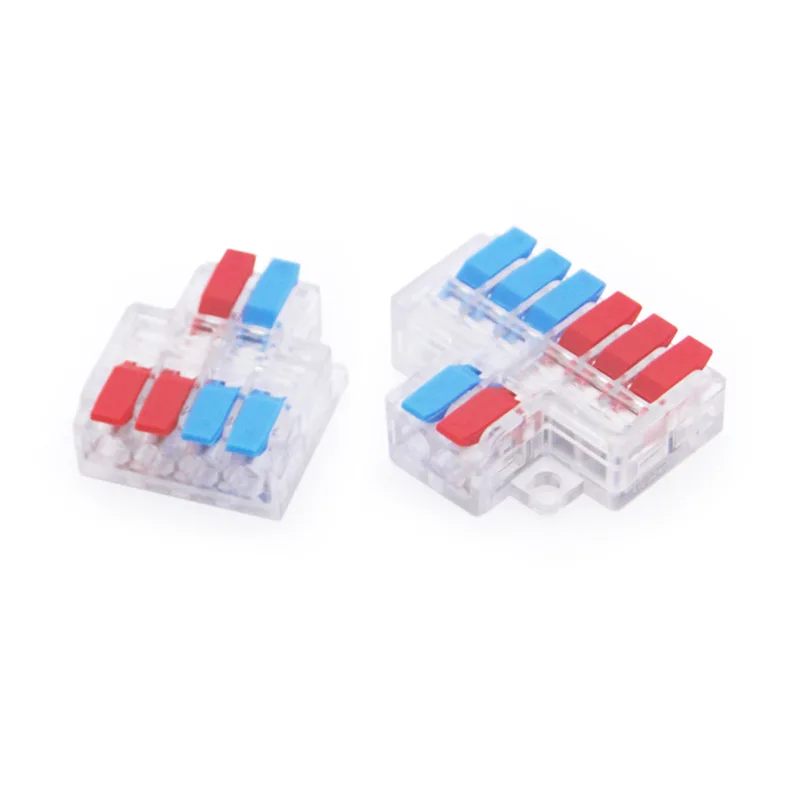

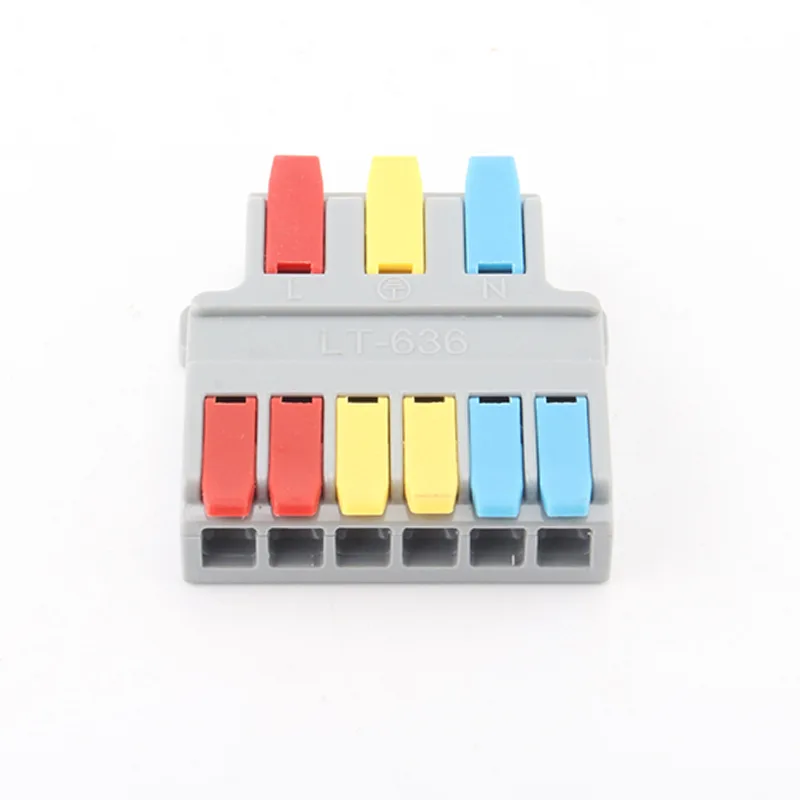

In modern electrical and automation systems, the connection relationships of circuits are becoming increasingly complex, and simple parallel lines or unidirectional distribution can no longer meet the demands. CHTAR's high-quality Two-in Four-out Splicing Wire Quick Connectors, which are multi-wire in and multi-wire out structure connectors, can address these issues. The size of the wires it connects ranges from 0.5mm² to 6mm². This series connects large-sized wires, with a maximum of 6mm². There are two options: 2P and 3P. The main line is configured with 2P and 3P, and then branches into two or three auxiliary lines. It goes beyond a single function, allowing engineers to achieve redundant parallel connection of dual power supplies, independent signal splitting, or convergence and integration of different lines on a single physical node. This is equivalent to establishing a three-dimensional transportation hub at the "crossroads" of the circuit, making the transmission of energy and signals possible!

Product Parameter (Specification)

Material Advantage

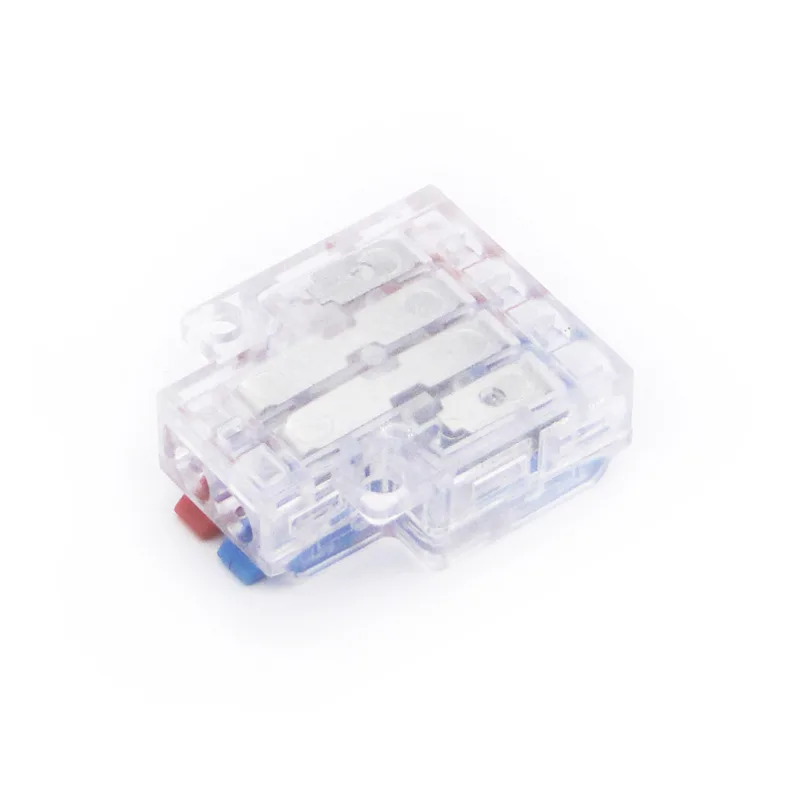

CHTAR Two-in four-out splicing wire quick connectors are made of Polycarbonate shell and nylon levers . The both plastic material is UL94 V0 grade material .The metal pars are conductive and spring inside what are made of copper T2 with Tin plated and S301 spring.

Product Feature

Two-in Four-out splicing wire quick connectors are designed for large-gauge cables, supporting connections up to 6 square millimeters. It can handle currents up to 35 amperes. They are using handles of different colors to clearly distinguish wiring routes.

Material Advantage

Two-in four-out Splicing Wire Quick Connectors utilizes imported virgin materials, with no or minimal addition of recycled materials. The materials comply with ROHS and REACH requirements.

Delivery advantage

We maintain substantial inventory of components and finished goods, enabling us to arrange shipments within the shortest possible timeframe. Typically, small shipments can be arranged within 2-5 days, while larger shipments can be arranged within 15 days. Orders with special requirements can also be shipped within 20 days.

Main Market

The Two-in Four-out Splicing Wire Quick Connectors are primarily sold to Northern Europe, South America, Russia, and certain Western European countries, as well as the domestic market.

Internation certificates

Our company's quick connectors have passed CE, TUV certification, and all products comply with ROHS and other environmental standards tests. Our company has also passed ISO9001 and other company certification systems.
