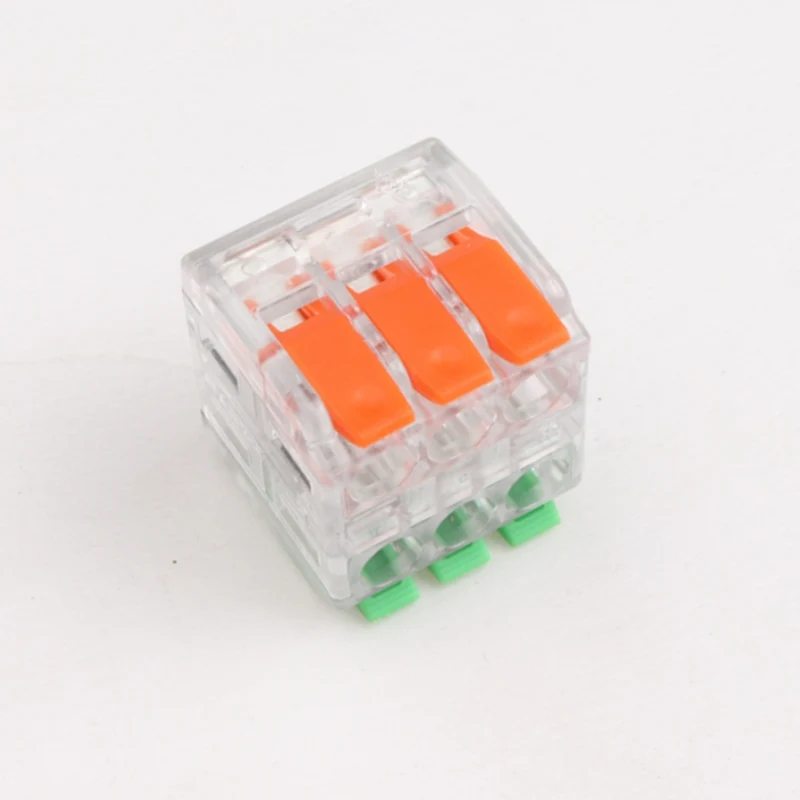

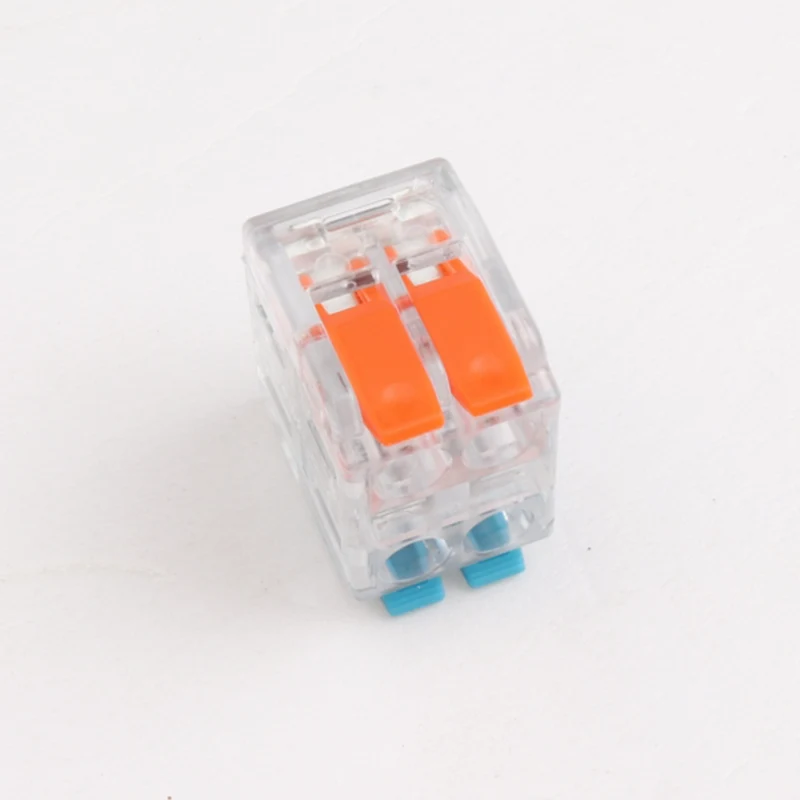

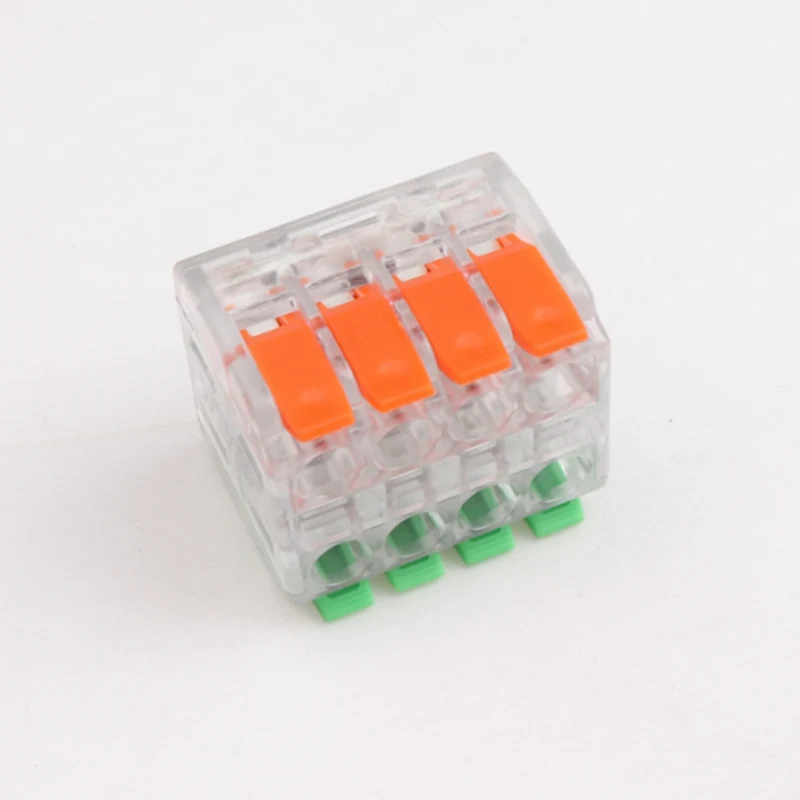

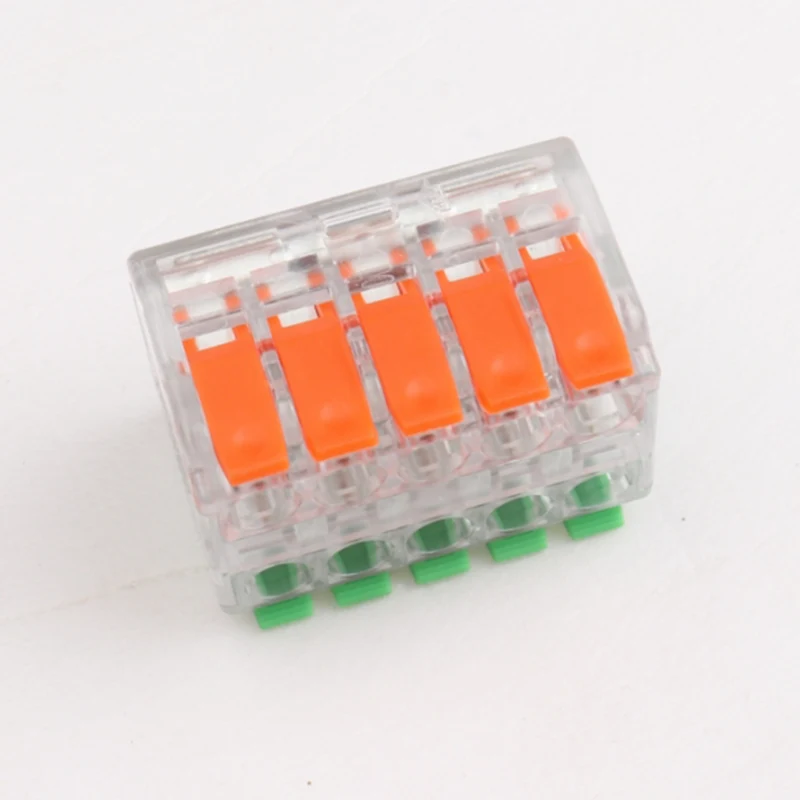

2P 3P 4P 5P Two Levels Splicing Wire Quick Connectors

Are you struggling with how to choose a high-quality quick connector? Then let's take a look at CHTAR. We are a manufacturer that produces 2P 3P 4P 5P Two Levels Splicing Wire Quick Connectors. It connects wires ranging from 0.5mm ² to 4mm ² and is used for wire connections in different quantities of lighting systems. We also offer customized full-process services. Welcome to consult us at any time!

Send Inquiry

Product Description

CHTAR is a manufacturer and supplier from Wenzhou, China. We have been deeply engaged in various types of quick and fast connectors for over 15 years. This 2P 3P 4P 5P Two Levels Splicing Wire Quick Connectors offers customers a variety of connector options with different poles. This series of quick connection terminals have a two-layer structure, upper and lower. Single-layer wiring circuits are interconnected, while upper and lower double-layer circuits are not interconnected. We look forward to becoming your close friend and partner in China.

Product Parameter (Specification)

Item	LT-522
Compatible	0.5-4mm²
Brand	CHTAR
Material	PC,UL94-V0,S301,Copper
Finish	Tin plated
Color	Transparent+orange,OEM
Current	32A
Voltage	250V
Working Temperature	-30℃- +105℃
Strip Length	11-12mm
Certificate	CE, RoHs, CQC, SGS, ISO9001:2008
Service	OEM, ODM
Number of poles	2P2, 3P2, 4P2, 5P2

Raw Material Advantage

CHTAR 2P 3P 4P 5P two levels splicing wire quick connectors are made of Polycarbonate shell and nylon levers . The metal pars are made of SS301 and copper with Tin plated. The polycarbonate is import raw material and UL94 V0 grade material.

Product Feature

2P 3P 4P 5P Two Levels Splicing Wire Quick Connectors are double-layered and have separate circuit connections to meet the needs of small spaces and multiple circuit connections that cannot be interconnected.The structure with handle facilitates multiple unwinding and reconnection of wires.

Product Application

Splicing Wire Quick Connectors With Levers are widely using for lighting system wires connection. Quick wire connectors is an efficient products, maintenance free junction designed to help electricians save significant installation time on site.

Packaging and Delivery

Provide customized packaging services according to the different needs of customers. For example, ordinary export carton packaging, card box packaging with airplane holes, round or square transparent plastic jar packaging, etc. Our company is located in the Yangtze River Delta. The city has developed logistics and transportation advantages. It can reach surrounding port cities the next day to achieve fast freight.

Company Culture

Our manufacturer has professional sales production team. Each member of our team has more than 5 years working experience. Some of them are more than 10years working experience . Our team members are very united and friendly. The company organizes regular team-building activities so that everyone can deepen their friendship and work together more closely.
