Multi-in Multi Out Splicing Wire Quick Connectors

In Wenzhou, Zhejiang Province, China, there is a manufacturer that produces Multi-in Multi Out Splicing Wire Quick Connectors -CHTAR. This is a city close to the port with convenient transportation, which enables you to receive stable transportation orders. We have absolute advantages in production and cost control. We have been engaged in various connectors for over 15 years. Of course, we are fully capable of independently designing products, modifying and improving product performance in real time according to market demands, and providing customized services for customers. Welcome to visit our factory in China!

Send Inquiry

Product Description

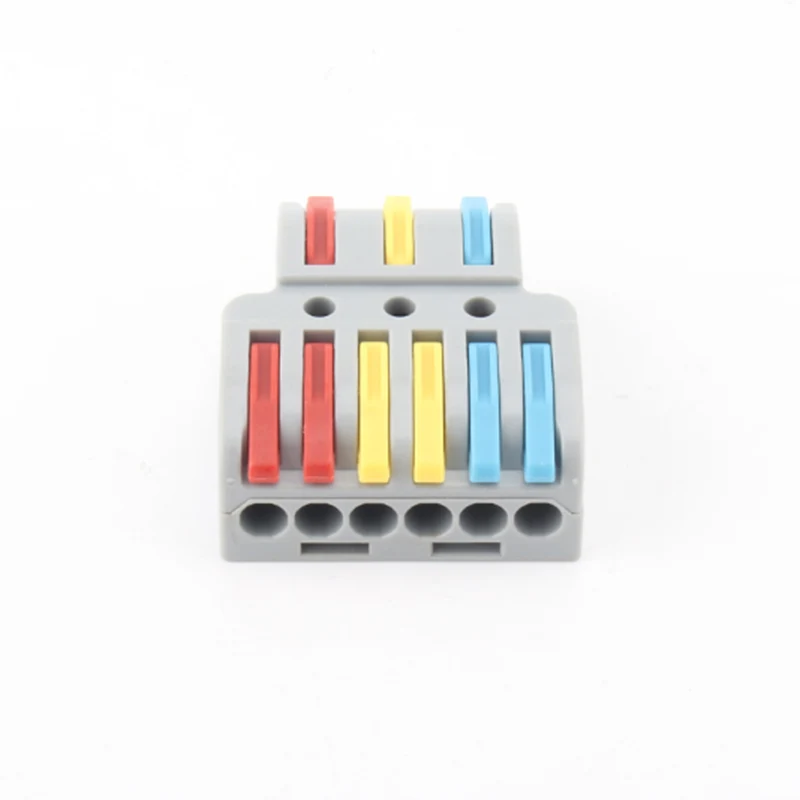

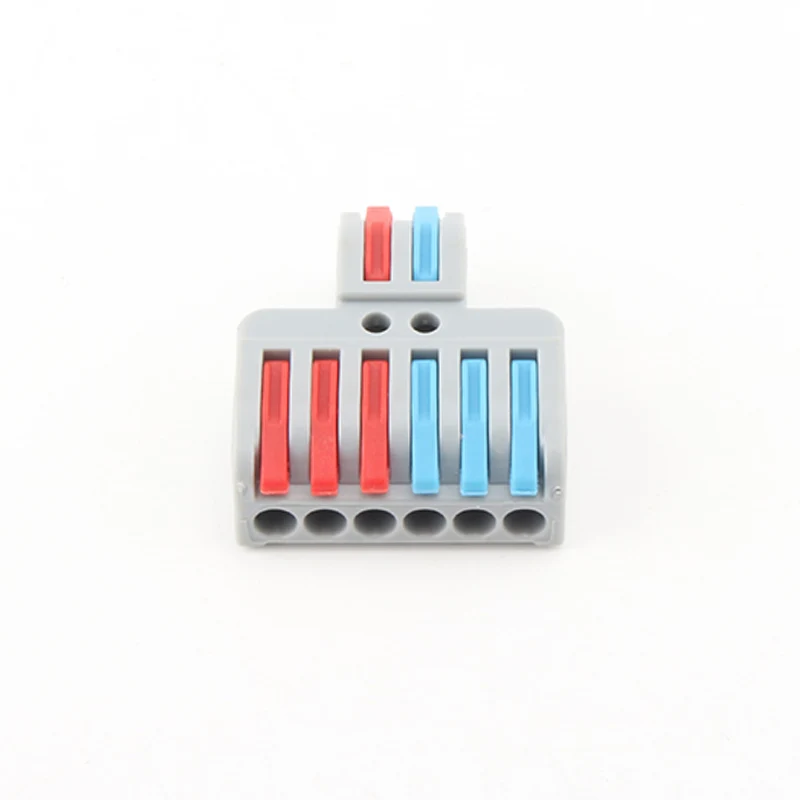

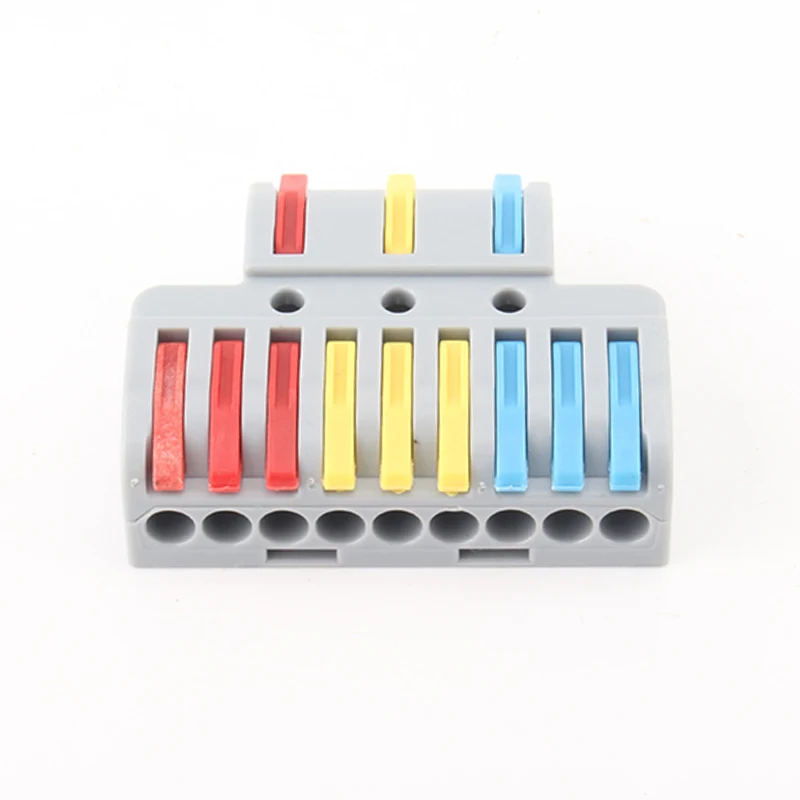

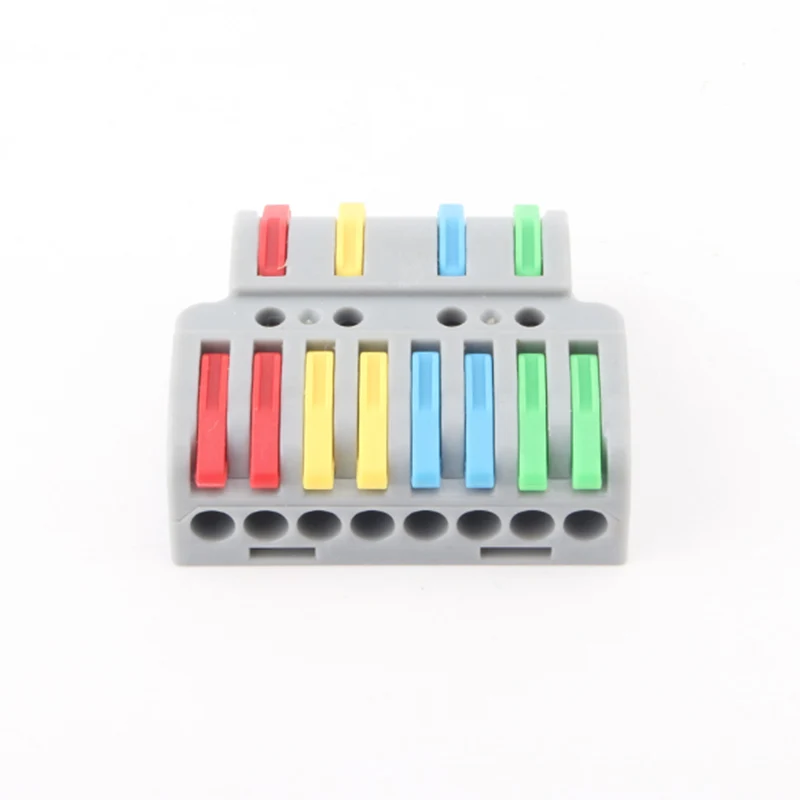

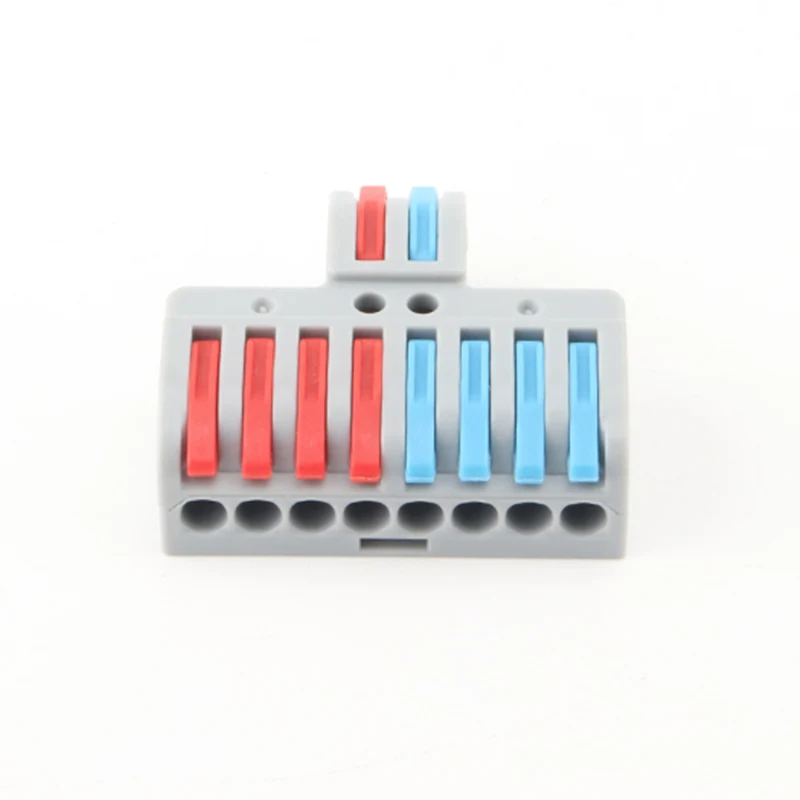

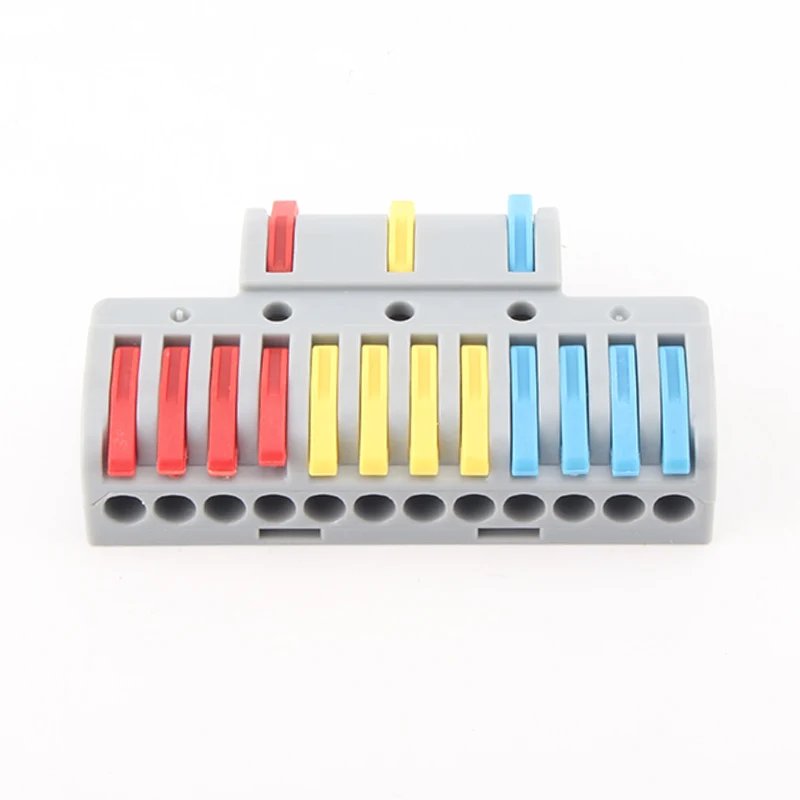

This CHTAR high-quality Multi-in Multi Out Splicing Wire Quick Connectors is a connector with a multi-in and multi-out structure. It connects wires ranging from 0.2mm² to 4mm². It can operate at a rated current of 32A. This series of products realizes the connection method of multi-line branches within a range of 4 square millimeters. Implement various branch structures such as 1 divided into 2, 2 divided into 4, and 3 divided into 6. Each group of lines is not connected to each other.

Product Parameter (Specification)

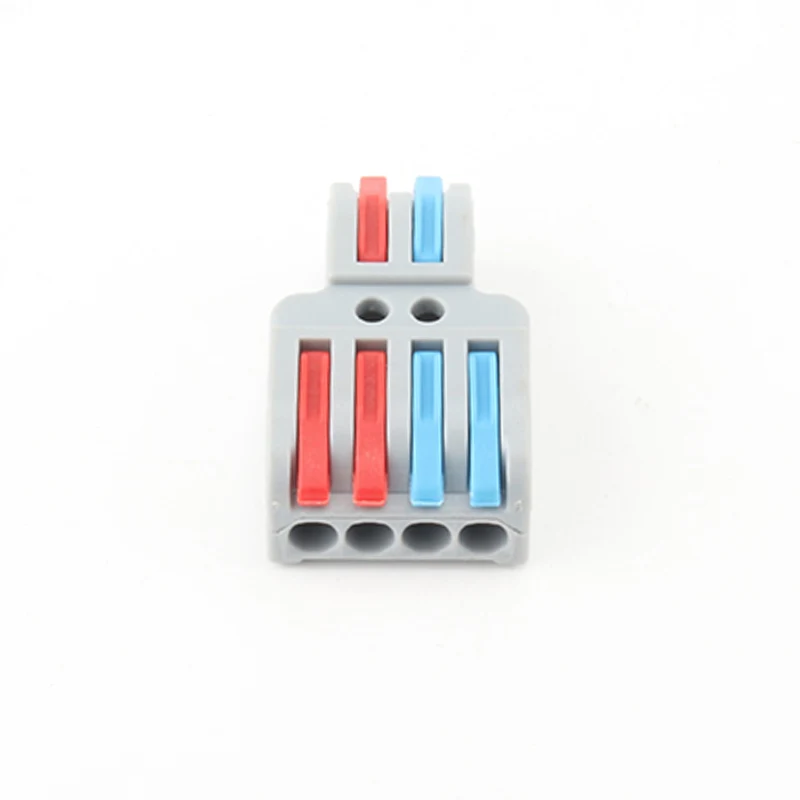

Item	LT-422
Compatible	0.2-4mm²
Brand	CHTAR
Material	PC, UL94-V0, S301, Copper
Finish	Tin plated
Color	Transparent+orange,OEM
Current	32A
Voltage	450V
Working Temperature	-30℃- +105℃
Strip Length	10-12mm
Certificate	CE, RoHs, CQC, SGS, ISO9001:2008
Service	OEM, ODM
Number of poles	2P - 8P

Material Advantage

CHTAR Multi-in Multi out splicing wire quick connectors are made of Polycarbonate shell and nylon levers . The both plastic material is UL94 V0 grade material .The metal pars are conductive and spring inside. They are made of S301 spring and copper T2 with Tin plated conductive.

Product Feature

Multi-in Multi Out Splicing Wire Quick Connectors classic product appearance, different color handle partitions realize the differentiation of the wiring direction of the product. Let users know more clearly how to connect the branch lines. The test hole reserved on the top of the product facilitates customers to test the power-on performance after wiring.

Multi-in Multi Out Splicing Wire Quick Connectors

Product Application

Splicing Wire Quick Connectors With Levers are widely using for lighting system wires connection. Quick wire connectors is an efficient products, maintenance free junction designed to help electricians save significant installation time on site.

Sample and testing

Our company provides free samples for customer performance testing. Our company also provides internal test reports and videos to prove product quality.

Internation certificates

Most of our company's terminal blocks have passed CE, TUV certification, and all products comply with ROHS and other environmental standards tests. Our company has also passed ISO9001 and other company certification systems.
