16 Pin TS Mini Heavy Duty Connectors

CHTAR is a professional 16 Pin TS mini heavy duty connectors manufacturer and supplier from Zhejiang China. We have been specialized in industrial heavy duty connectors for many years. Our heavy duty wire connectors have competitive prices and sold to many different countries. We are looking forward to be your reliable and long-term partner in China.

Send Inquiry

Product Description

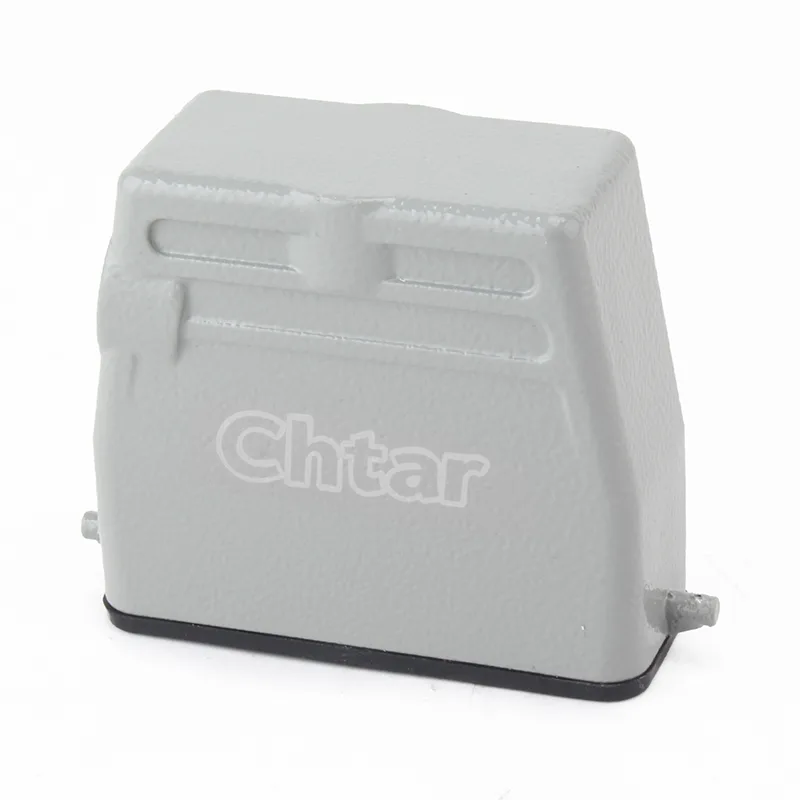

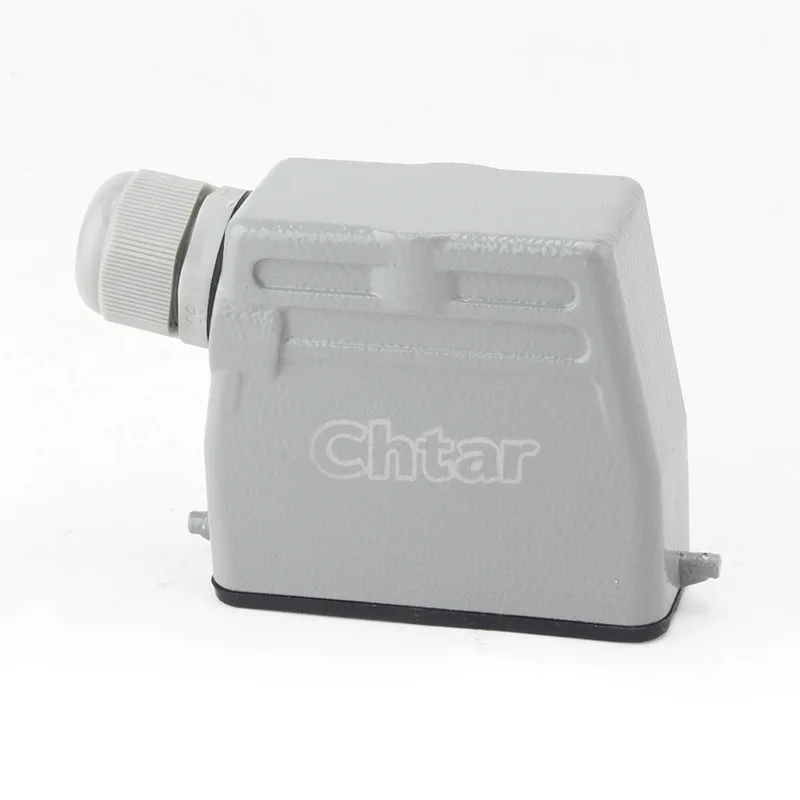

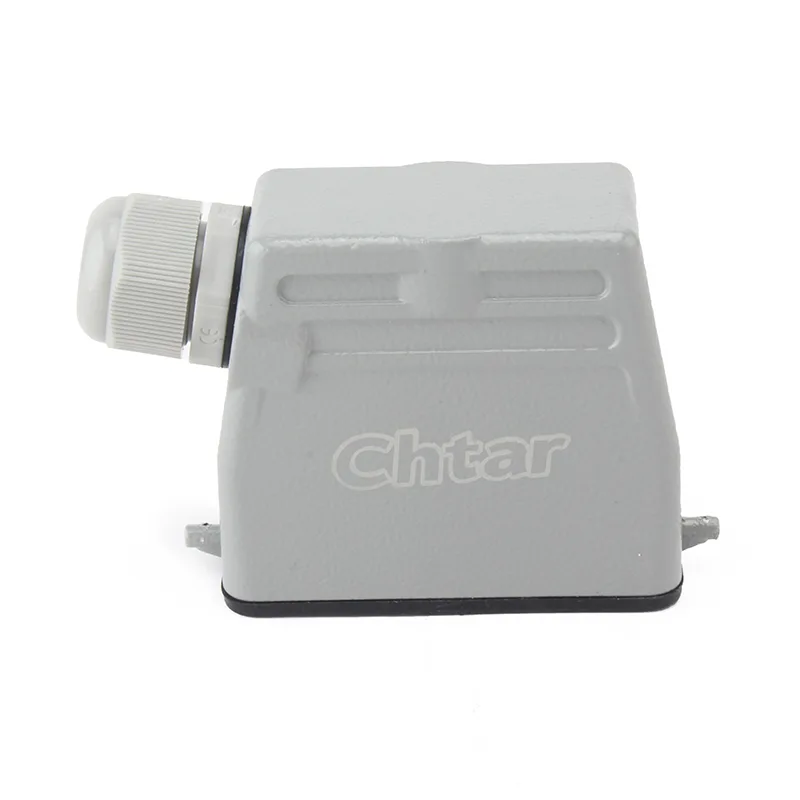

This CHTAR 16 Pin TS mini heavy duty connectors is matching H16A-AG-LB as male and female parts to work together. It is 16A current heavy duty electrical connectors. It is mini size to compare with HE range. From the design perspective,it is made of aluminum.

Product Parameter (Specification)

Item	H16A-TS
Compatible	Harting Han 16A size
Brand	CHTAR
Material	Aluminum
Finish	Powder-coated
Color	RAL 7037 (grey)
Locking Type	Single Lever
Thread	PG11
Working Temperature	-40℃- +125℃
Waterproof degree	IP65
Certificate	CE, RoHs, CQC, SGS, ISO9001:2008
Service	OEM, ODM

Product Feature

It is mini size and male housing of 16 Pin , It is suitable for applications with limited space that require connecting multiple wires, supporting up to 16 cores with a current rating of 16A. It is male part housing and working with HA-016-M or HA-016-F inserts parts to connect. It is IP65 grade heavy duty waterproof electrical connectors.

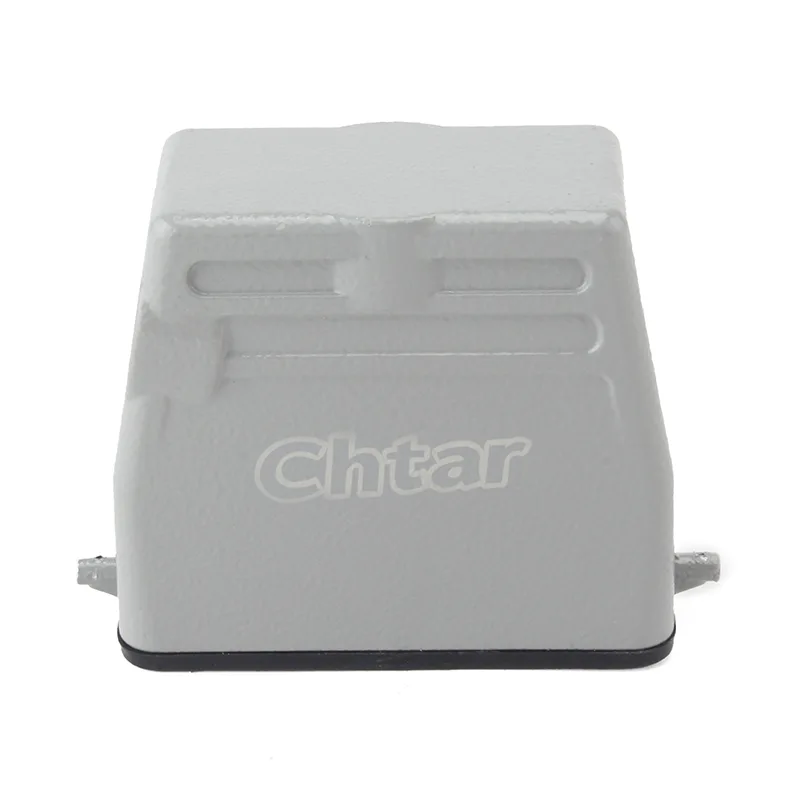

16 Pin TS mini Heavy Duty Connectors

Quality Control

Our quality control (QC) process for heavy duty connectors is a comprehensive system designed to ensure reliability,durability,and safety in demanding industrial and transportation applications.It integrates rigorous checks at every stage, from design to final shipment. We supply heavy duty connectors after inspecting.

Material Advantage

As the original manufacturer of heavy-duty connectors, we maintain strict control over the raw materials for every component. Housings are made of zinc alloy or aluminum , inner connectors are made of enhanced PC. All contact pins are made of brass with silver plated .

Company Culture

Our company is a warm and caring factory where employees are deeply united and supportive of one another. We are a young and professional company dedicated to providing customers with cost-effective products as our core mission.

Corporate Qualifications

Our company has obtained ISO 9001 certification. Our products hold certifications including CE and ROHS. All products are manufactured in strict compliance with international quality standards.
