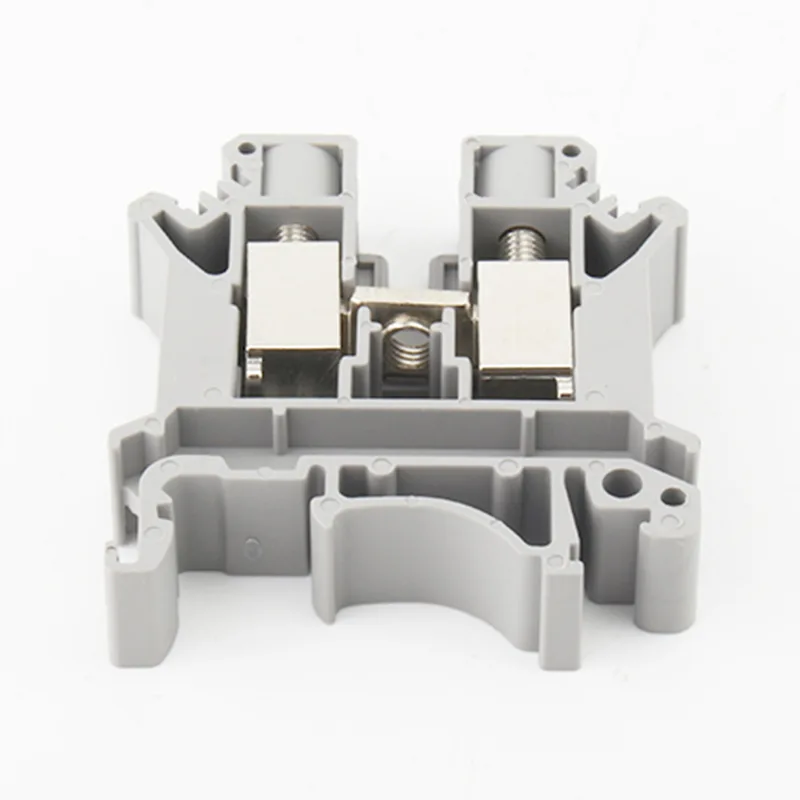

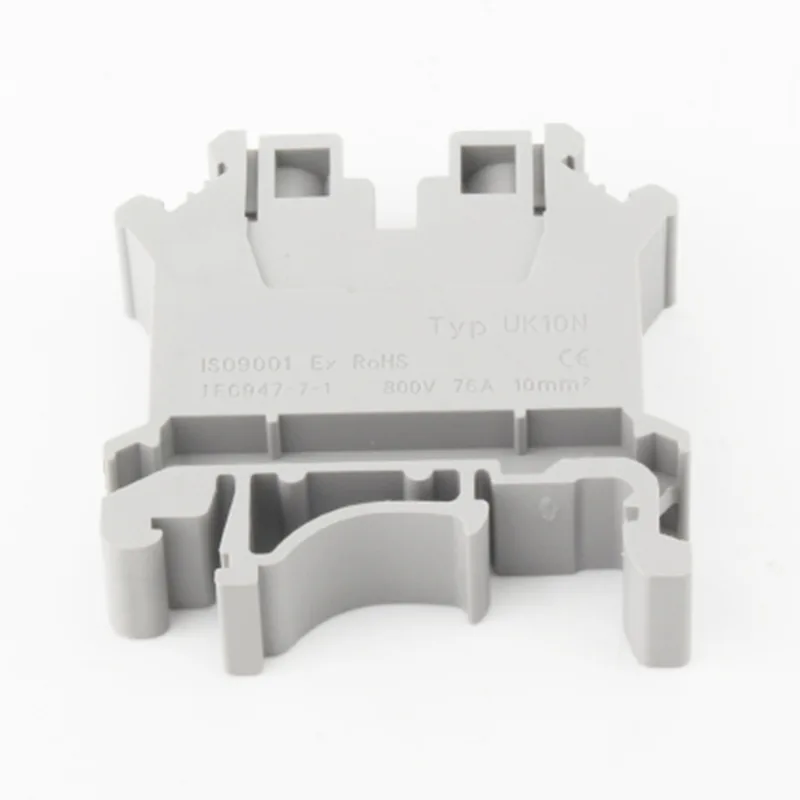

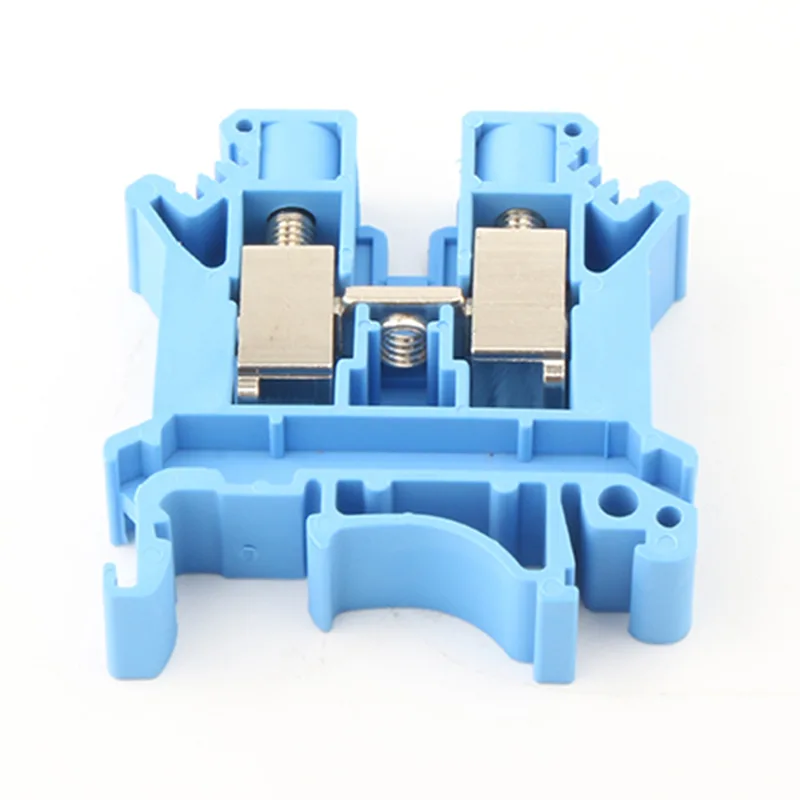

UK 10N Din Rail Terminal Block

This CHTAR UK 10N Din Rail Terminal Block represents a solid, all-around choice for industrial connectivity. Its specifications tell the story: a 40A current rating, 800V withstand voltage, and support for wire cross-sections from 0.5 to 10 mm². This balance makes it exceptionally useful for consolidating various control and power wiring needs into a clean, modular layout on the DIN rail.

Durability comes from its clamping technology. The screw and pressure plate system ensures that every termination, when properly torqued, achieves a uniform and durable connection. This results in the low, stable contact resistance and mechanical strength required by international standards—a critical factor for long-term reliability in applications subject to movement or thermal stress. For a secure and inspectable point, the UK 10N Din Rail Terminal Block is a preferred option.

The material selection and features reinforce its value. The PA66 housing ensures flame retardancy and structural integrity. Tool-less DIN rail mounting via a spring clip speeds up installation, and the clear protective cover maintains IP20 safety while allowing instant visual verification. Rated for -40°C to +120°C, it guarantees performance across most conditions. In essence, selecting the UK 10N Din Rail Terminal Block means opting for a proven, adaptable, and inspection-friendly component. The UK 10N Din Rail Terminal Block is a reliable foundation in any well-designed

Product Parameter (Specification)

Product Application

The UK 10N Din Rail Terminal Block is designed with control and safety in mind. Its key feature is physical circuit isolation—meaning during maintenance, you don’t have to shut down the whole panel. Isolating just the needed part lowers exposure to live terminals and reduces the chance of faults. Add to that its insulated, enclosed construction, and you’ve got a terminal block that naturally suits tougher conditions. Whether it’s high voltage or an industrial environment, the UK 10N Din Rail Terminal Block helps you build in safety from the start.

Certificate

Our UK 10N screw Din Rail Terminal Block has passed CE certificate test. Our terminal block are according to EN61000 CE test standard to produce.
