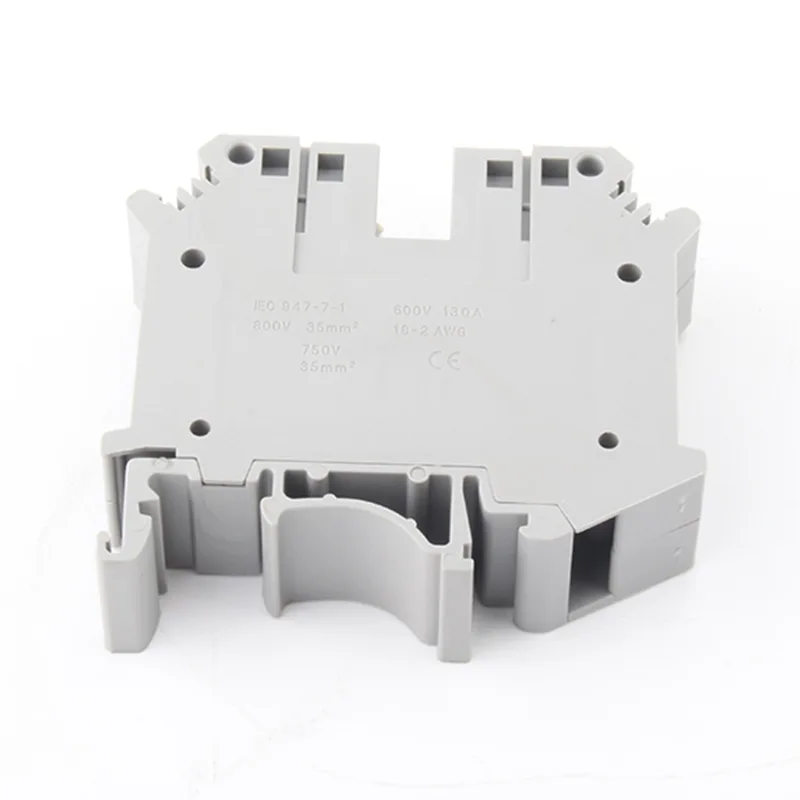

UK 35N Din Rail Terminal Block

When you're dealing with high-current circuits, you need a terminal block that's built from the ground up for the job. This CHTAR  UK 35N Din Rail Terminal Block. Its clamping system is a great example of this focus—using M6 or larger screws paired with a reinforced pressure plate to generate over 500N of force at the proper torque (around 2.0–2.5 N·m). That kind of power is what gives you a reliable, gas-tight connection on large conductors, even pre-fitted ones, keeping resistance low and preventing the loosening we've all seen in vibrating panels.

Material choice is just as critical. The conductive parts in the UK 35N Din Rail Terminal Block use T2 copper or high-grade alloys, plated with tin or silver. Silver plating, in particular, is a smart touch—it really cuts down on contact resistance and stands up to high-temperature oxidation over time. And the cross-section isn't accidental; it's precisely sized to manage temperature rise at full rated current.

Structurally, it feels solid. The housing is made from high-strength, glass-reinforced PA66 (rated UL 94 V-0 for flame retardancy). The mounting clip has been reinforced, so even the pull from heavy cables won’t budge it on the rail. Plus, the large transparent cover is a practical feature: it provides IP20 protection while letting you check connections at a glance. For a heavy-duty connection you can set and forget, the UK 35N Din Rail Terminal Block is designed to deliver. It’s the kind of component, like the UK 35N Din Rail Terminal Block, that makes high-power design one less thing to worry about.

Product Parameter (Specification)

Product Application

The UK 35N Din Rail Terminal Block from our company incorporates a universal mounting foot compatible with 35mm² DIN rails. It sees widespread application in industrial automation (e.g., robotics and lithium battery production lines), power distribution, and building electrical systems. Capable of handling conductors from 0.25 mm² to 150 mm², it is engineered to perform under strenuous environmental conditions such as high temperature and high voltage.

Key applications include serving as the main power input for equipment like high-power injection molding machines, CNC machine tools, and compressors, as well as forming motor-side connections in frequency converters above 55kW. IIn these demanding roles—where high current and constant mechanical stress are the norm—the UK 35N Din Rail Terminal Block proves itself as a robust and genuinely trustworthy component.

The UK 35N Din Rail Terminal Block is regularly specified in power distribution setups—think busbar links and branch circuits in MCCs and capacitor banks. Its ability to carry high current also makes it the preferred option for the AC side of solar inverters and storage converters, where reliability is key.

Furthermore, in severe operating environments like those encountered in heavy machinery and marine electrical systems—where generator output is interfaced with large-capacity batteries—the UK 35N Din Rail Terminal Block is designed to meet the specific demands for vibration resistance and corrosion resistance, ensuring consistent performance and longevity.

Sample Term

Our company provides complimentary samples for customer testing purposes. Should you require any samples, please feel free to contact us at any time. Customers are only responsible for the shipping costs associated with sample delivery.

Customization Process

We accommodate custom packaging and labeling requests. Should clients require production of their own branded packaging, we can coordinate accordingly.
