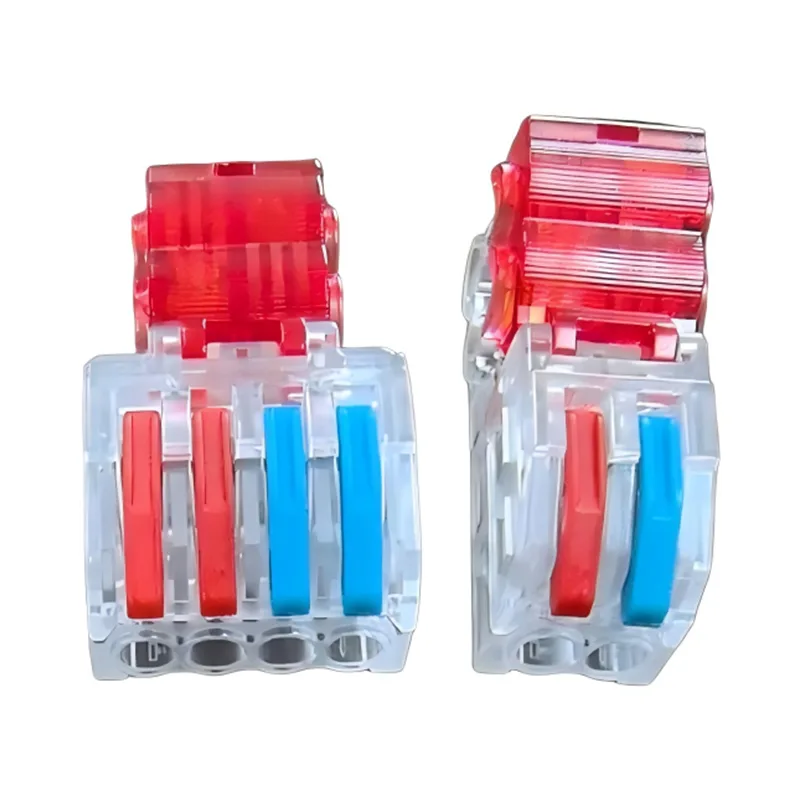

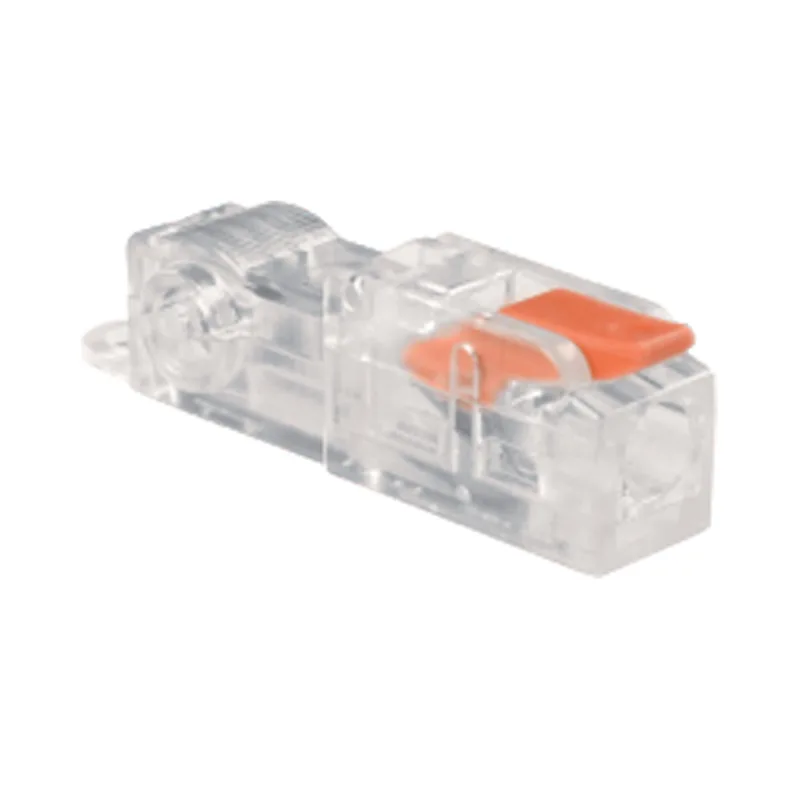

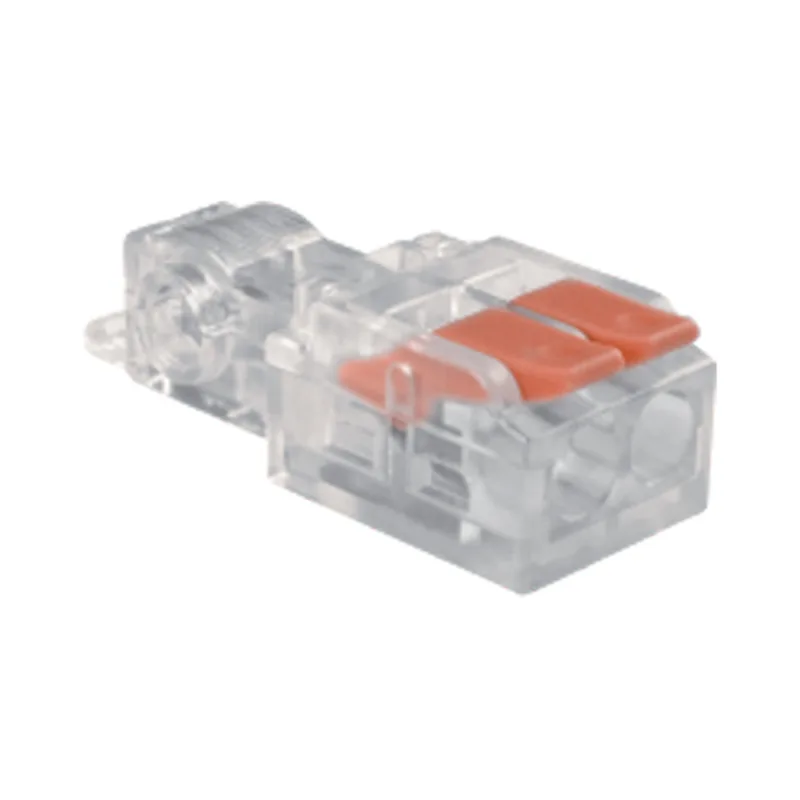

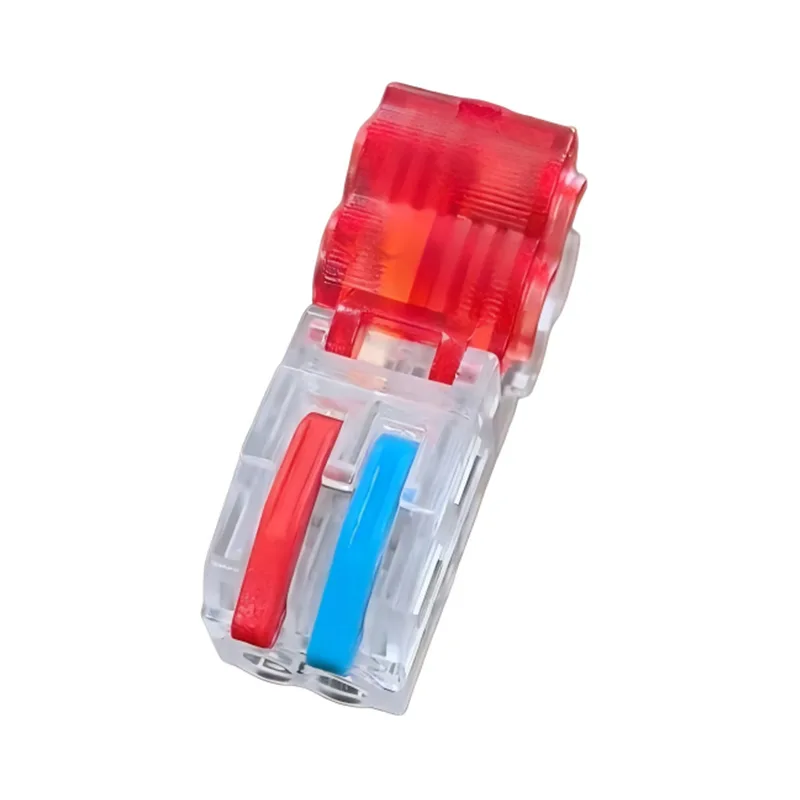

Free Stripping T Type Splicing Wire Connectors

This CHTAR free stripping T type splicing wire connectors features to connect wire without stripping. It features to put wire in connectors, wire can be stripped when close the levers . Hot sales wire connectors are connected wire size from 1mm2 to 4mm2 .

Product Parameter (Specification)

Material Advantage

CHTAR free stripping T type splicing wire connectors are made of transparent PC material what is UL94 V2 grade material and Nylon lever UL94 V0 grade material. The metal components consist of a conductive plate made of Brass and a spring plate made of S301 material.

Structural Advantages

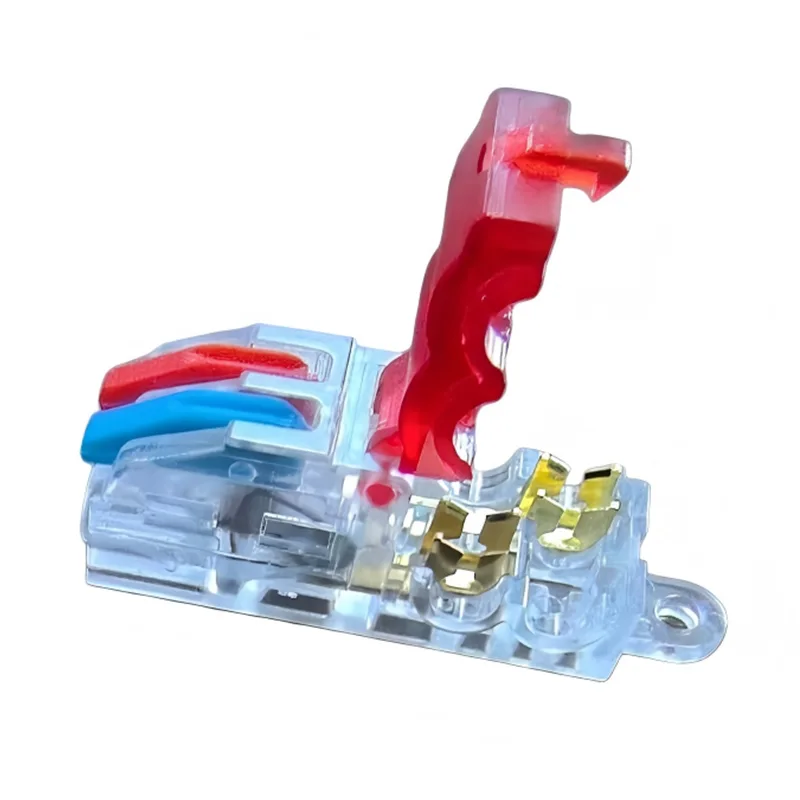

Free stripping T type splicing wire connectors supply internal contacts penetrate insulation to reach conductor without stripping . Simple lever operation opens and closes the clamping mechanism. It can be opened and reused multiple times without performance loss. They accept solid and stranded copper conductors within specified ranges.

Efficiency advantage

Modern design quick connectors are hot sales in world market. They contribute to energy efficiency by enabling precise and low-loss electrical connections. Manufacturer can support green initiatives by developing products for renewable energy systems, using recyclable materials and eco-friendly manufacturing processes. Enabling more efficient power distribution in industrial and building applications,reducing waste.

Industry Strengths

Our factory has been deeply rooted in the quick-connect terminal industry for many years, and we are committed to continuously developing more efficient and user-friendly products. We are also constantly optimising and upgrading our product designs to achieve the highest possible performance standards.

Price advantage

Our factory provides factory direct good prices what are more competitive than others . By continuously optimising our structure and improving energy efficiency, we aim to achieve a more competitive cost structure.

Transportation Advantages

China factory is located along sea port and air port, close to Ningbo and Shanghai. Goods can be delivered to Ningbo Port and Shanghai Port within one days, enabling the fastest possible shipment of goods overseas.

Areas of application

Our quick connectors are widely used in permanent connectors within LED lighting modules and luminaires, wiring in appliance control boards and HVAC units,automotive and railway control system junctions,building automation sensors and actuators where space is limited inside device housings, consumer electronics and power supply internal wiring.
